CBA 3000

CBA 3000 allows any timing test, motion and speed analysis, multiple contemporary static and dynamic contact resistance measurements, both sides grounded (BSG) tests, undervoltage condition test and more. All these functions are integrated in a single lightweight test case without the need of connecting additional external modules.

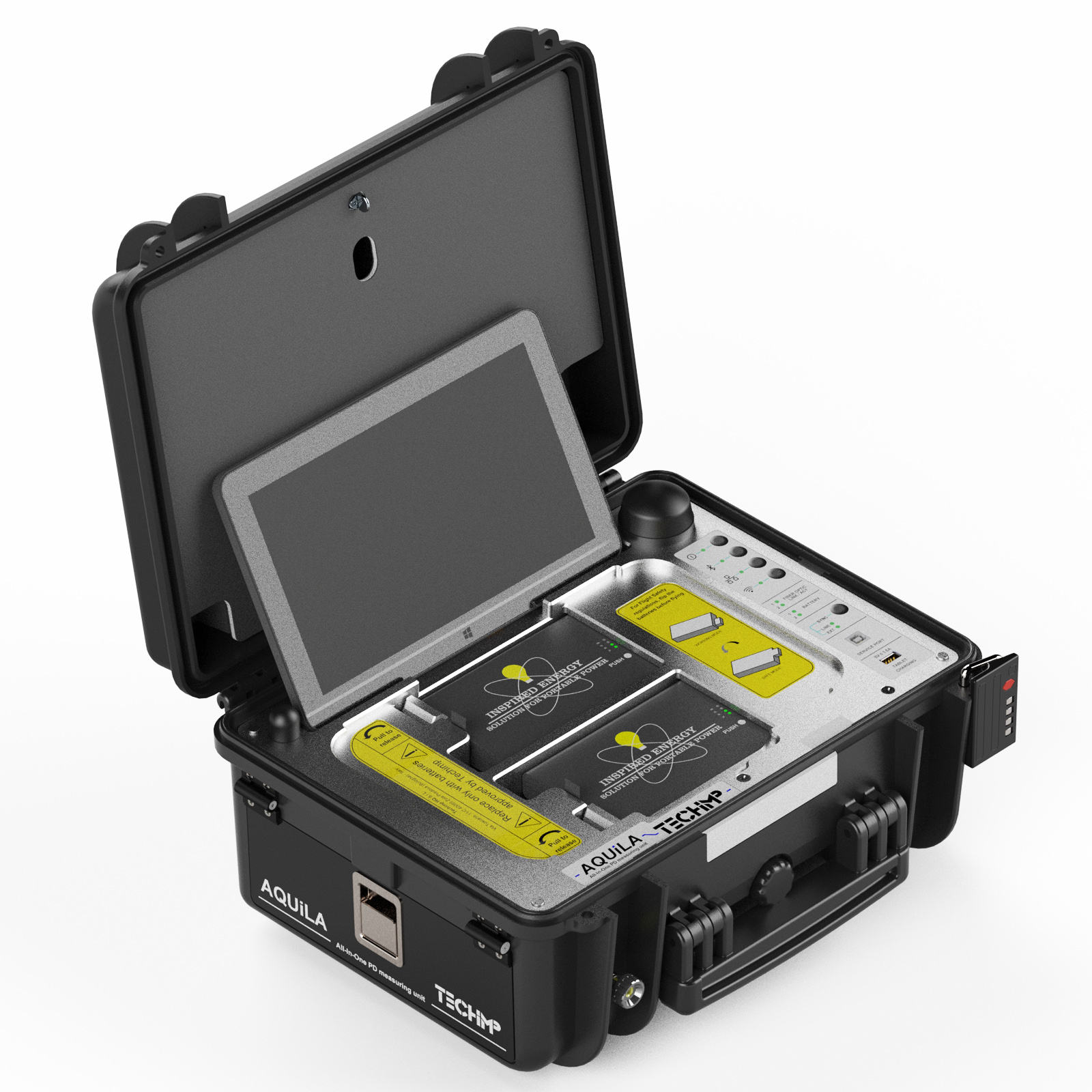

AQUILA™

AQUILATM - portable PD analyzer is a one for ALL Assets:
TECHIMPs PDPortable AQUILATM has been expressly designed to respond to all requests for a robust and compact portable all-in-one PD detection station providing a full range of options ideal for on field applications. 20+ years of service experience has been condensed in this unit representing a state-of-the-art PD device integrating TECHIMP's innovative PD detection technology (T/F Map) with multiple connectivity (Wi-Fi, Fiber Optics, USB, bluetooth) and power supply.
The instrument can be used to set-up a temporary monitoring system for simultaneous testing of HV cable during commissioning. Connection via fiber optic allows creating a network of acquisition units at different measurement points.

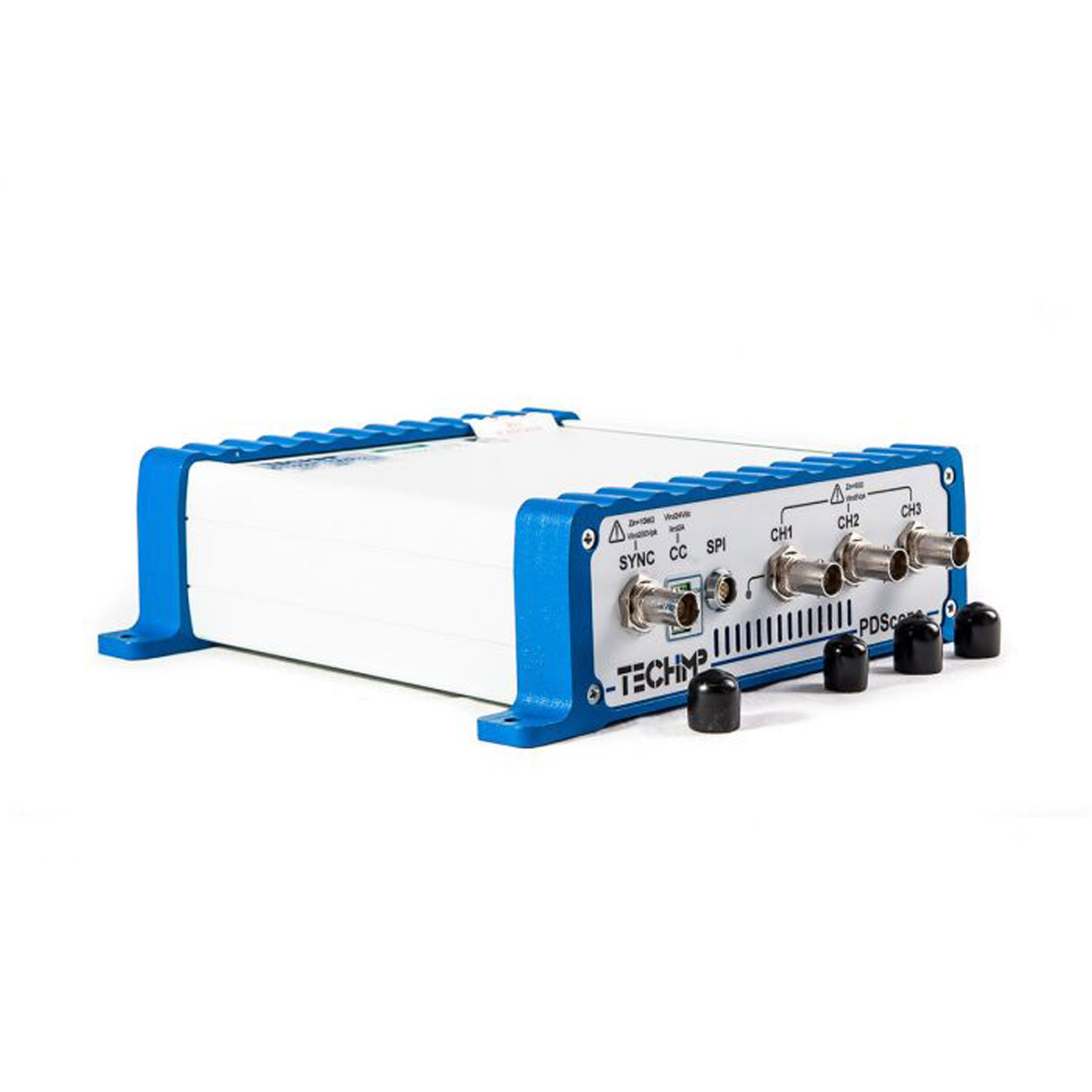

PDScope™

The PDScopeTM is the ideal device for PD Monitoring of HV Cable, Generators, GIS, MV cable and switchgear as well as transformers.
It's the ultimate solution for industrial monitoring. The PDScopeTM is a part of the PDCheckTM family and particularly designed to be an integral part of TECHIMP’s monitoring systems. Integrated into TECHIMP’s PDHubsTM, the PDScopeTM is a powerful PD analyzer based on Techimp TF Map technology (patented) allowing preliminary noise rejection and automatic calculation of statistical parameters relevant to Partial Discharges through its high resolution and fast sampling rates.

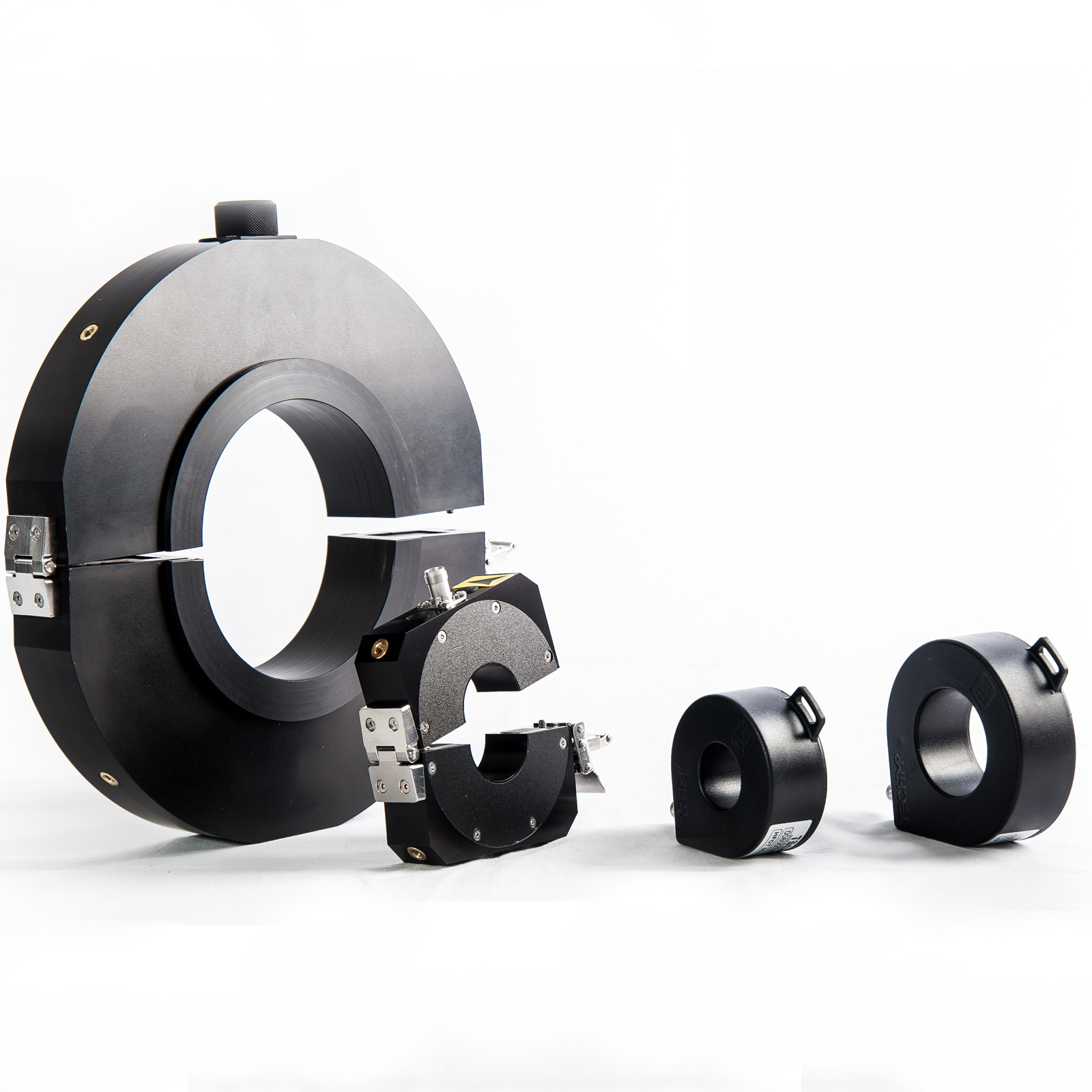

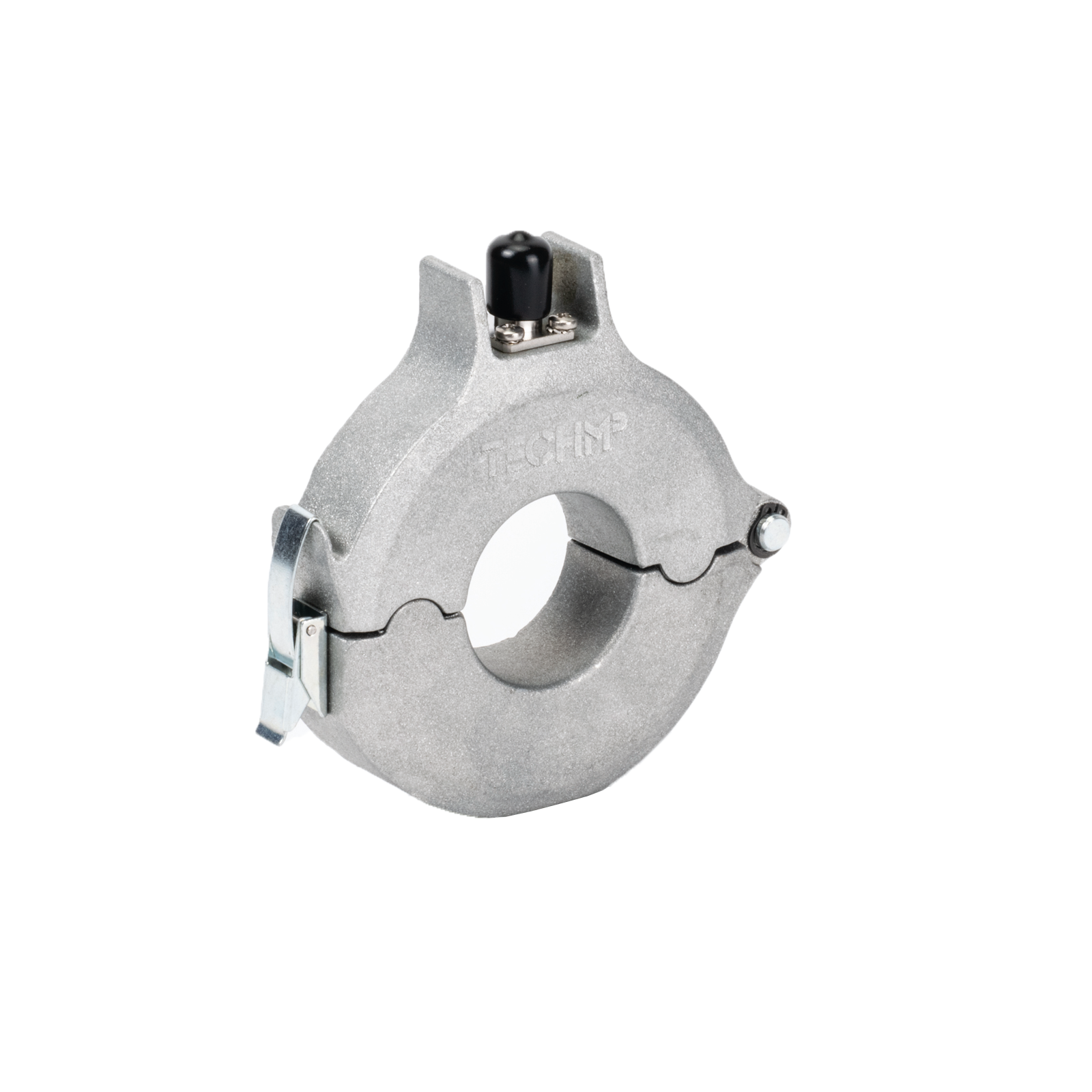

HFCT clamp Ø 39 - 78 - 140 mm

TECHIMP’s Clamp High Frequency Current Transformer are inductive sensors for partial discharge measurements. It is suitable for on/off line PD tests on many electrical systems such as cables, transformers, rotating machine, etc...
The main advantage of a Clamp HFCT is that it can be clamped directly on the ground connection of the system to be tested without de-energizing it.

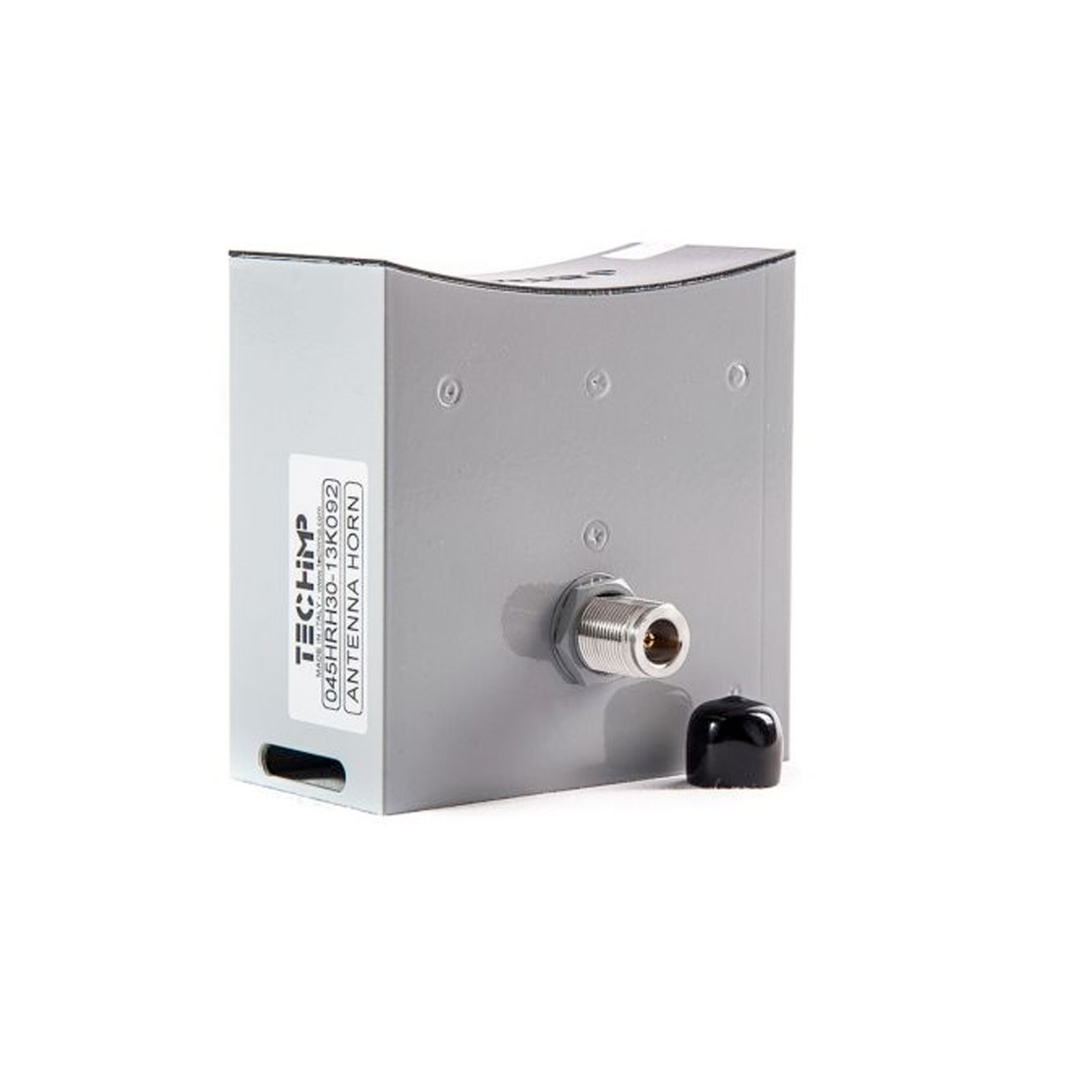

UHF Horn Antenna

Horn antenna is a partial discharge sensor designed to receive electromagnetic (EM) emissions from a PD occurring in electric assets like GIS and GIL or MV and HV power transformers. It is a broadband antenna with a flat response which makes Horn antenna suitable in a number of different applications. It has been optimized to operate in a frequency range suitable for PD activity monitoring and it was designed to provide maximum sensitivity and high gain.

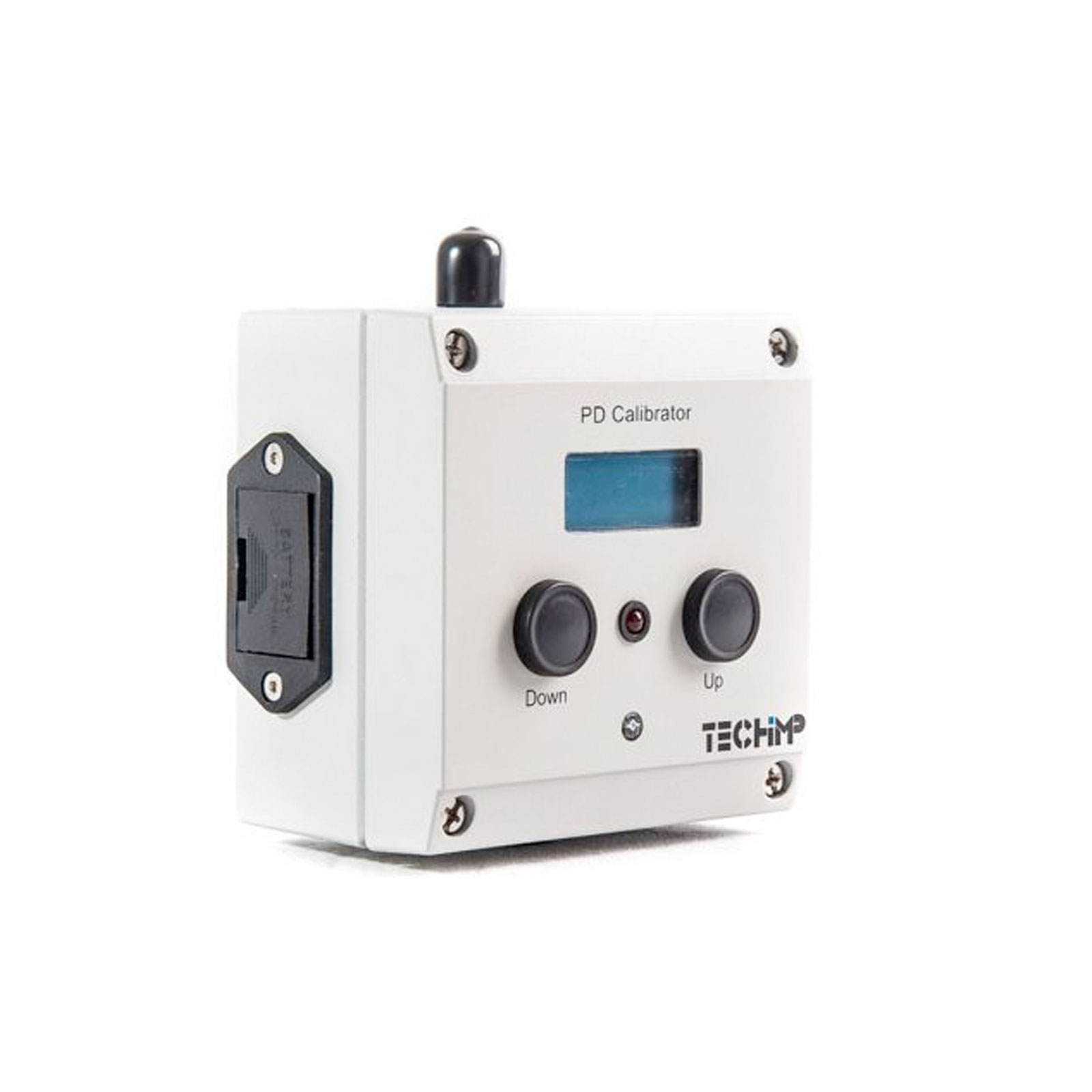

PD Calibrator

This High performance partial discharge calibrator has excellent pulse-with stability; scale calibration factors are permanently stored inside its flash memory. Thanks to on board photo coupler PDCAL output pulse can be synchronized with the actual line frequency through external surrounding electrical light source systems. 1pC-100pC, 50pC-800pC and 0.2V-50V UHF-GIS versions available

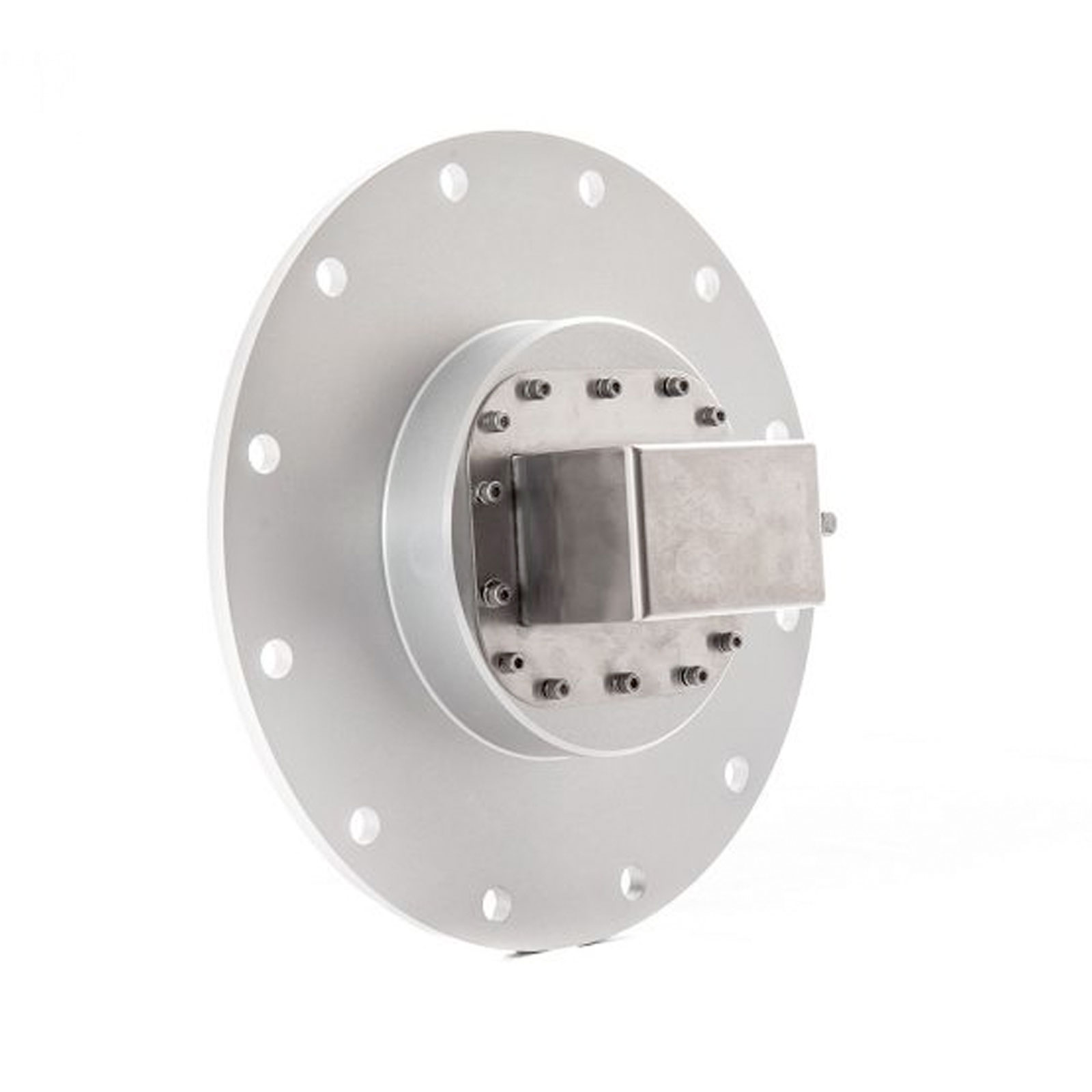

UHF Spiral Antenna for HV-GIS

UHF Spiral antenna is a partial discharge sensor designed to receive electromagnetic (EM) emissions from a PD occurring in the monitored asset. It is a broadband antenna with a flat response which makes Spiral antenna suitable in a number of different applications. It has been optimized to operate in a frequency range typical for PD activity and it was designed to provide maximum sensitivity and high gain. It can be virtually applied in any electrical equipment provided that it has apertures or EM transparent surfaces.

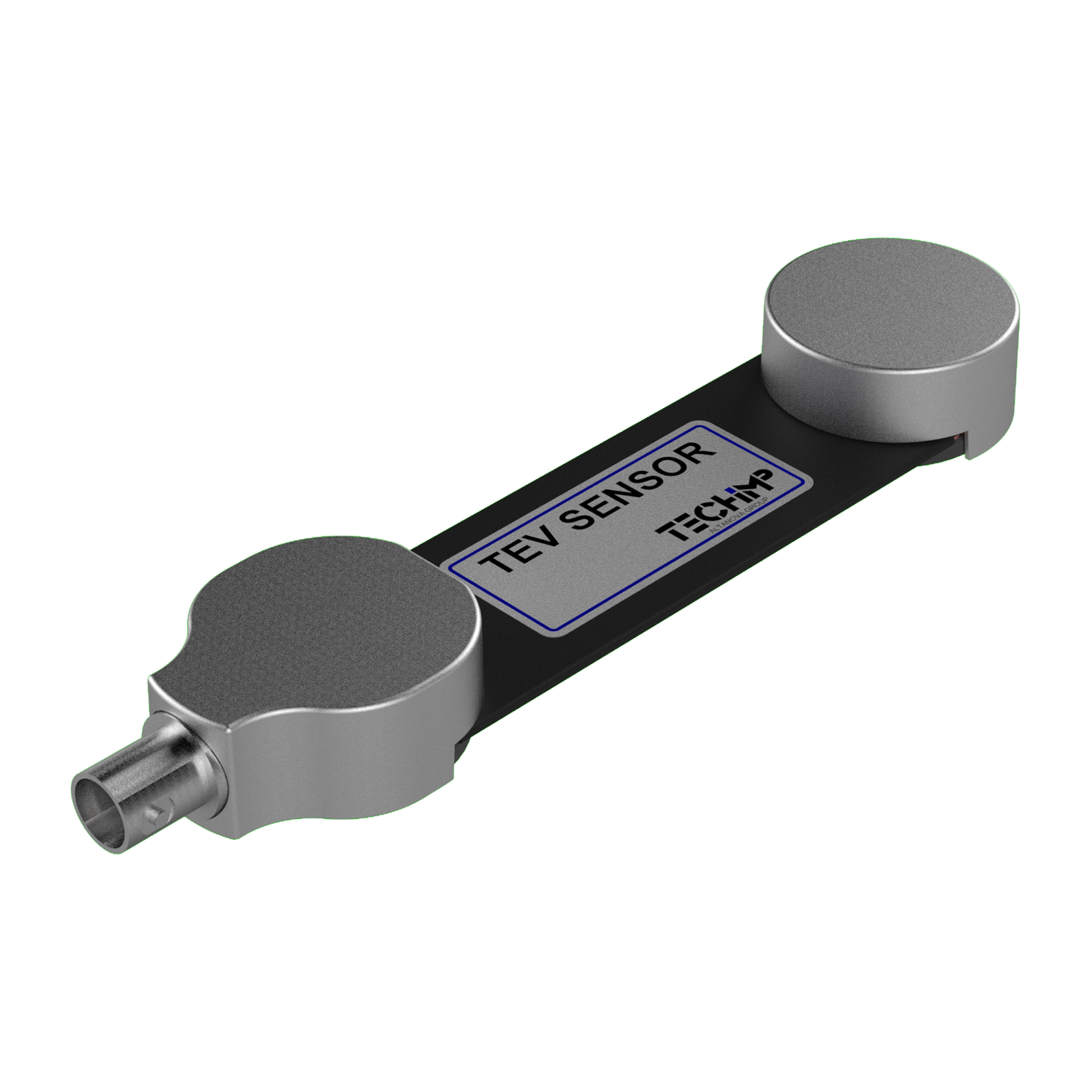

TEV Antenna

TEV stands for Transient Earth Voltage. TEV sensor is a partial discharge sensor whose working principle is based on a direct Capacitive coupling with a Switchgears earthed metal case.

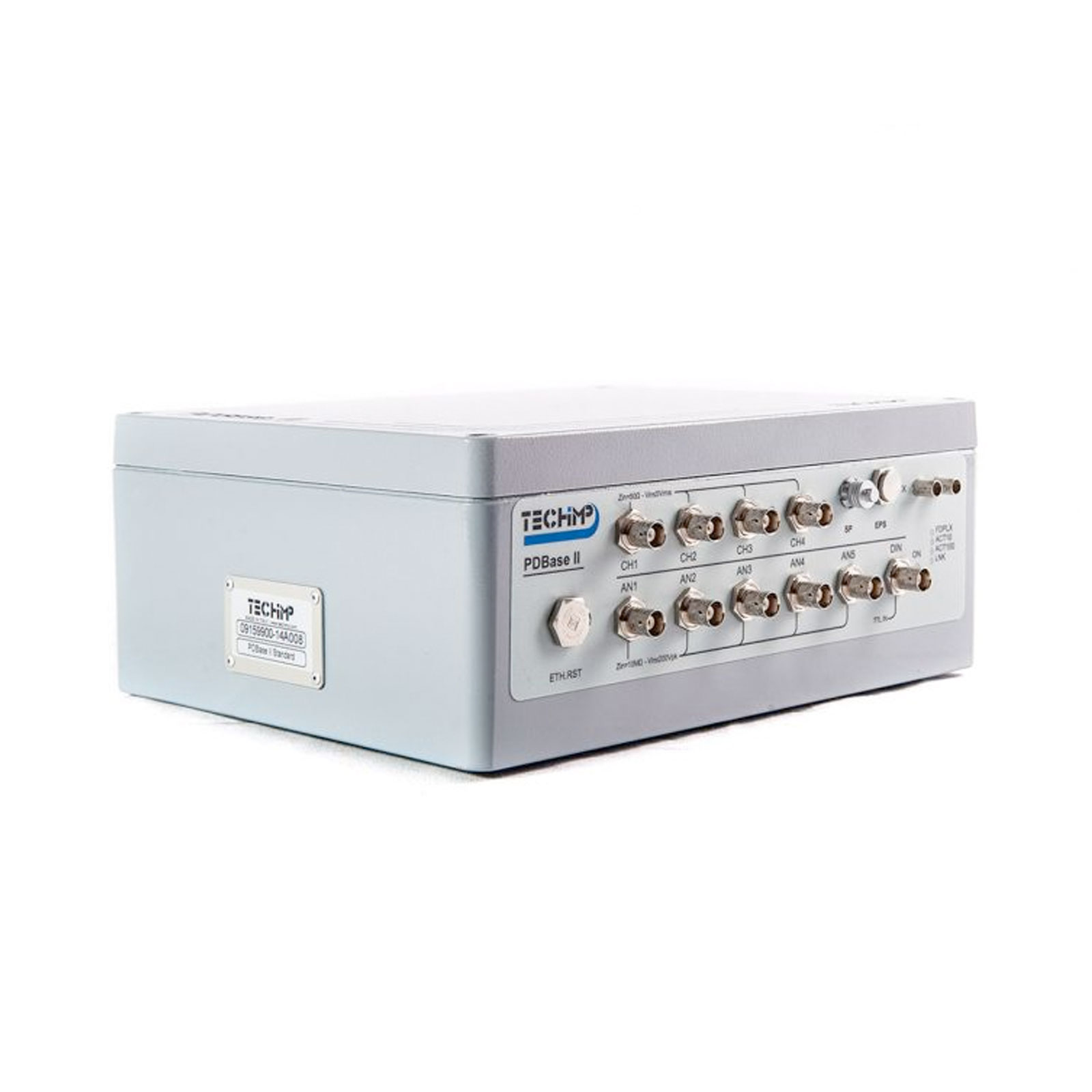

PDBASE II

Acquisition Unit for Research and Quality Control. PDBaseIITM has been expressly designed for the needs of a researchlab or for quality control. The PDBaseIITM is equipped with an ultra-wide band digitizer and integrated processing capabilities. With its fast sampling rate (200 MS/s) and its on-board processing capabilities, a considerable number of digitized PD pulse waveforms are analyzed and pulse features are stored for a further processing leading to the final PD source identification

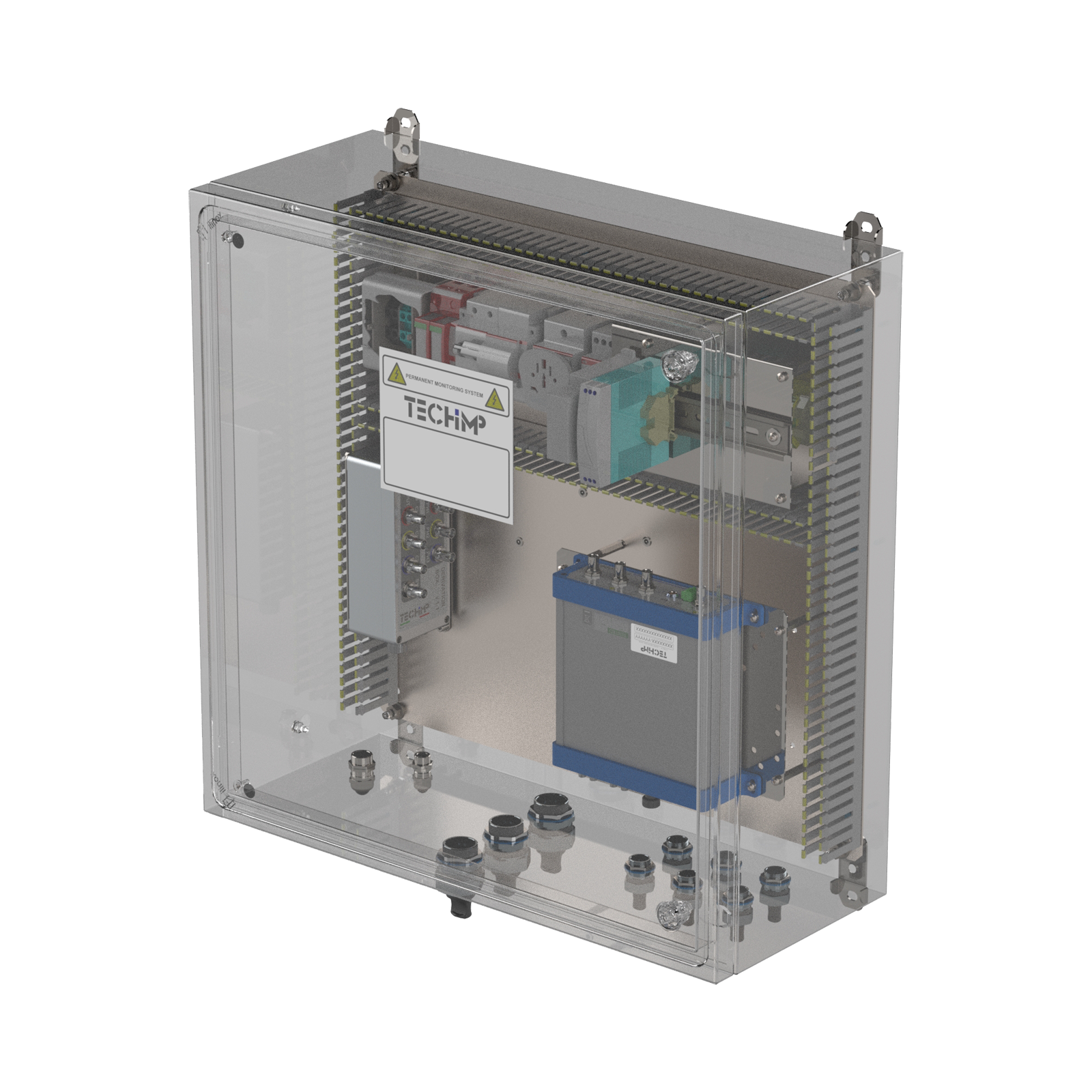

PD Hub™

Techimp’s Partial Discharge (PD) Monitoring systems usually consists of a Central Unit and distributed Data Acquisition Units – the PD Hub™ - able to acquire and process the PD signals locally detected through PD sensors installed on each of main electrical assets (generator, transformer, HV cables and GIS).

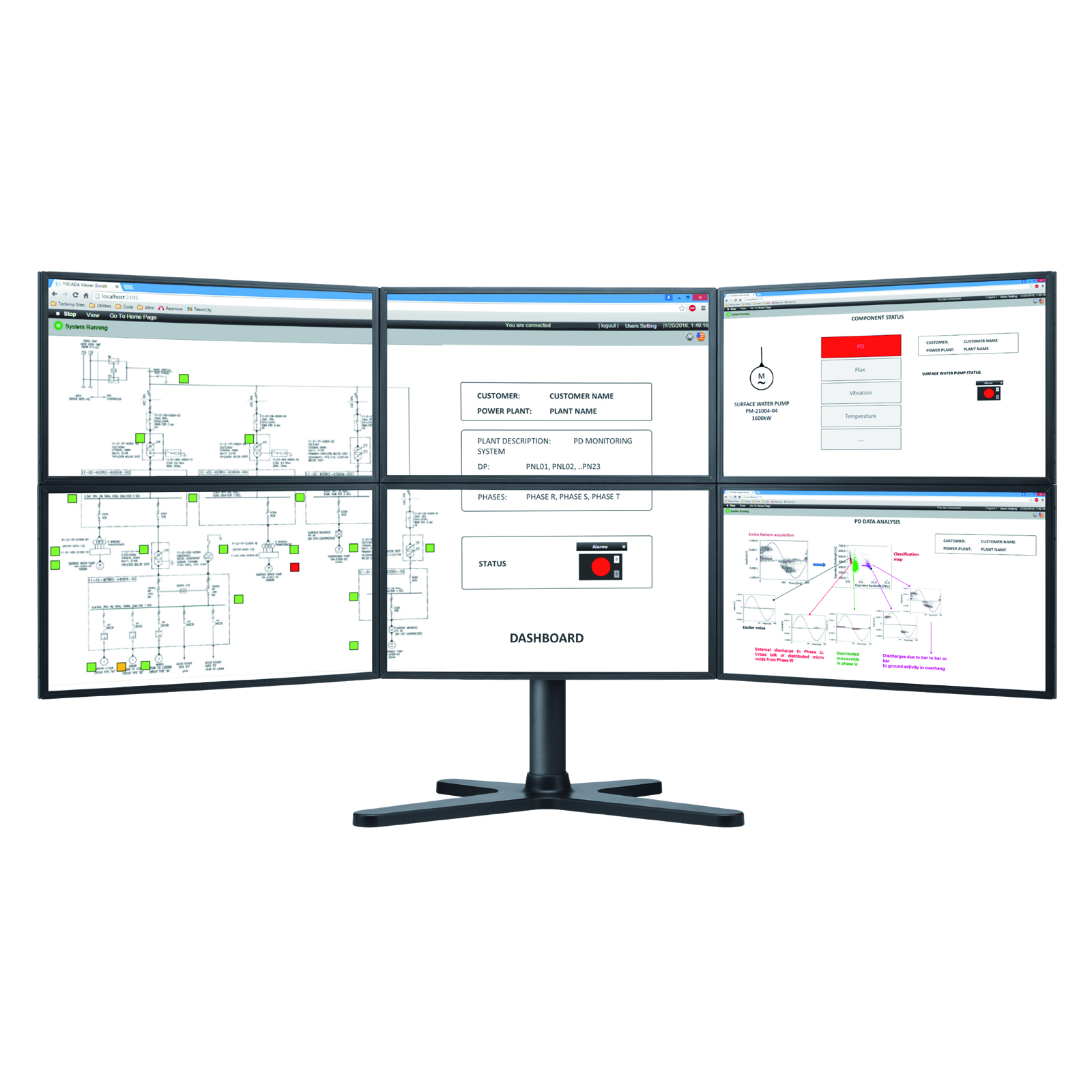

TiSCADA™

TECHIMP - Altanova Group has developed powerful and effective tools which can help asset managers to take critical decisions and manage power plants in a cost saving ways. Ti-SCADA implements a Real Time condition control of your asset, through a powerful Human Machine Interface (HMI) fully configurable, web based, displaying graphs, charts, trends, KPI, historical data, alarms and customizable reports.

HFCT - High Frequency Current Transformer

Techimp HFCT is an inductive sensor for partial discharge measurements. It is suitable for on/off line PD tests on many electrical systems (cables, transformers, rotating machine, etc..). It has to be applied to the ground connection of the system to be tested.
High Frequency Current Transformer Clamp Ø 30-50-70-90 mm

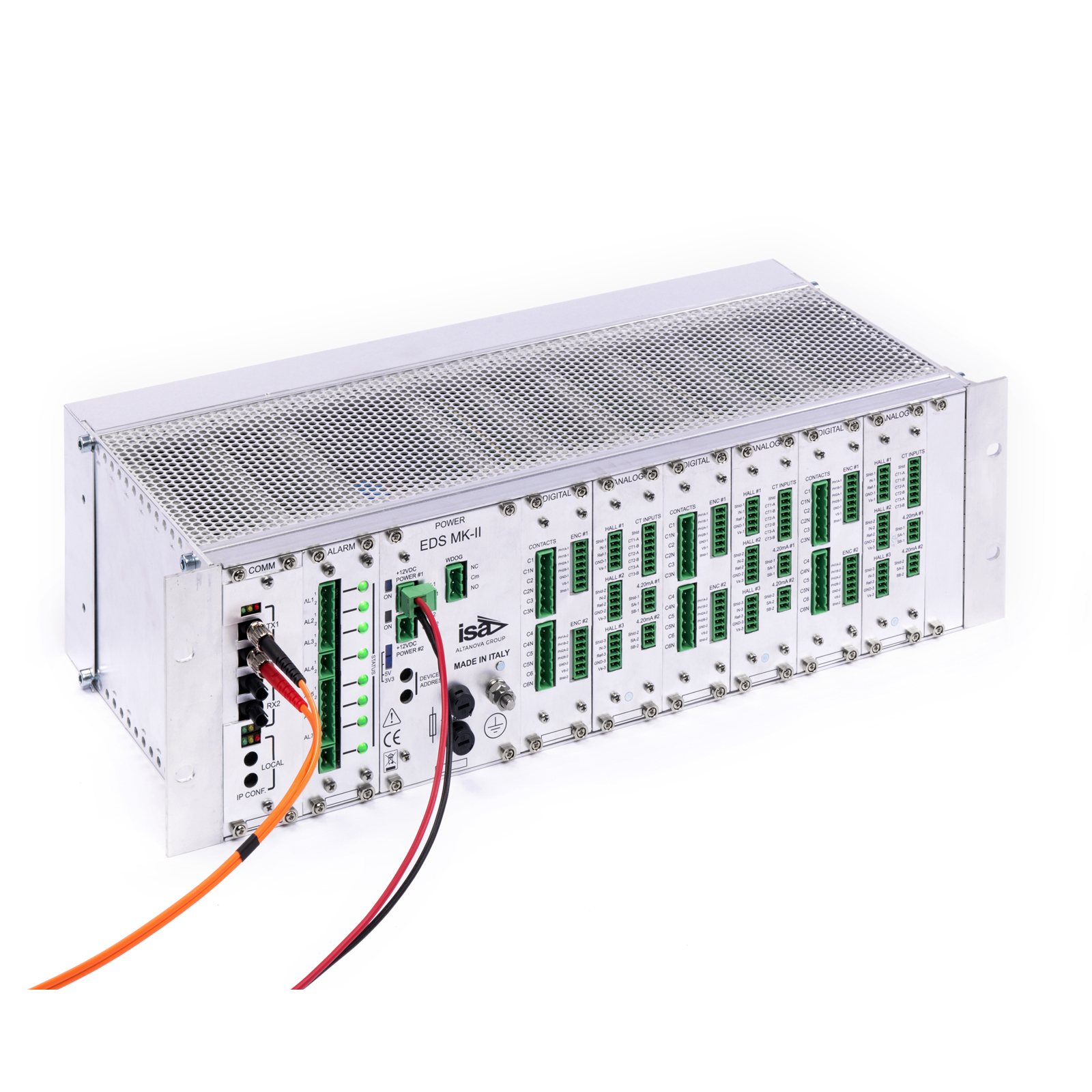

Expert Diagnostic System

EDS - Expert Diagnostic System - is an Overall Condition Moni­toring System designed to monitor the main substation assets: current transformer, voltage transformer, power transformers, circuit breakers, surge arresters and GIS switchgear, which integrates all the real time conditions from all relevant substation assets in a single system.

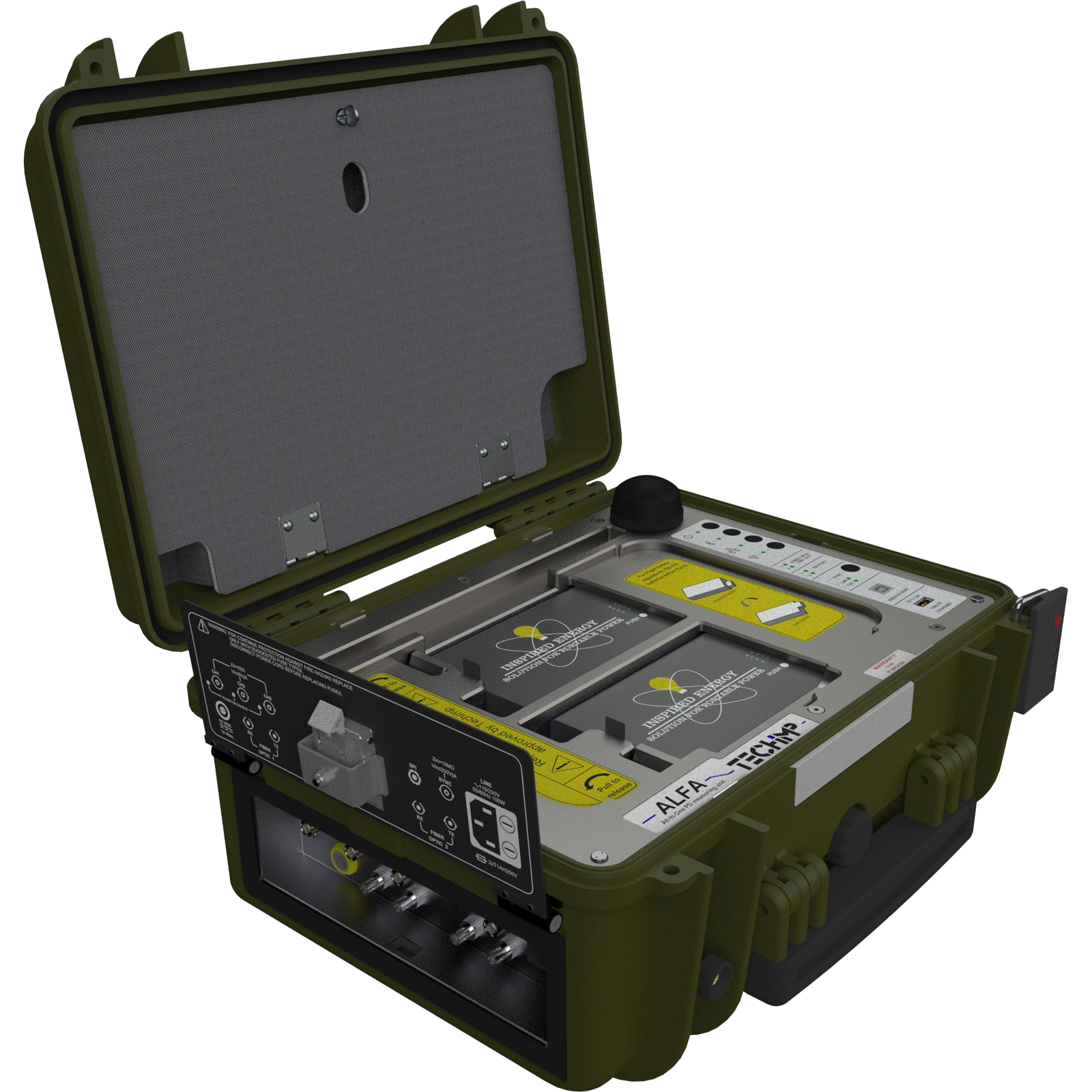

ALFA™ - Online PD Testing

Get started immediately with PD testing. The ALFATM has been developed for service departments or companies with limited skills in the field of interpretation of PD data. With little effort in training of your staff, you will shortly be able to take PD measurements on your customers assets. With the data sent to our specialists you will receive a comprehensive analysis in return.
Like its big brother AQUILATM, the alfaTM has been expressly designed to respond to all requests for a robust and compact portable all-in-one PD testing device for all assets like transformer (HV & MV), cable (HV & MV), rotating machines (generators and motors) as well as switchgear (air- or gas-insulated)

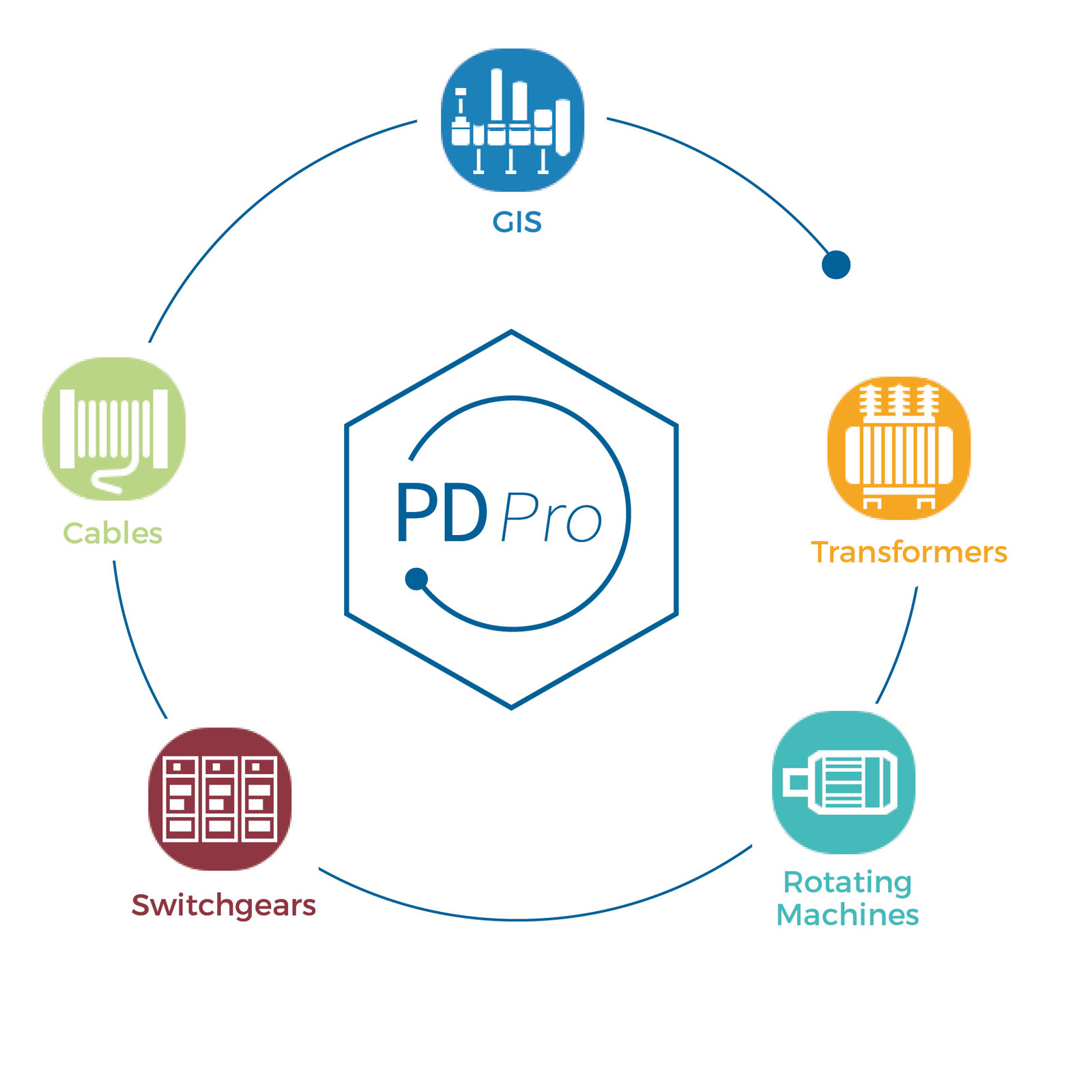

PDPro

PDPro is a NEW software platform designed for all Techimp’s Partial Discharge testing instruments, suitable for all High and Medium Voltage equipment.

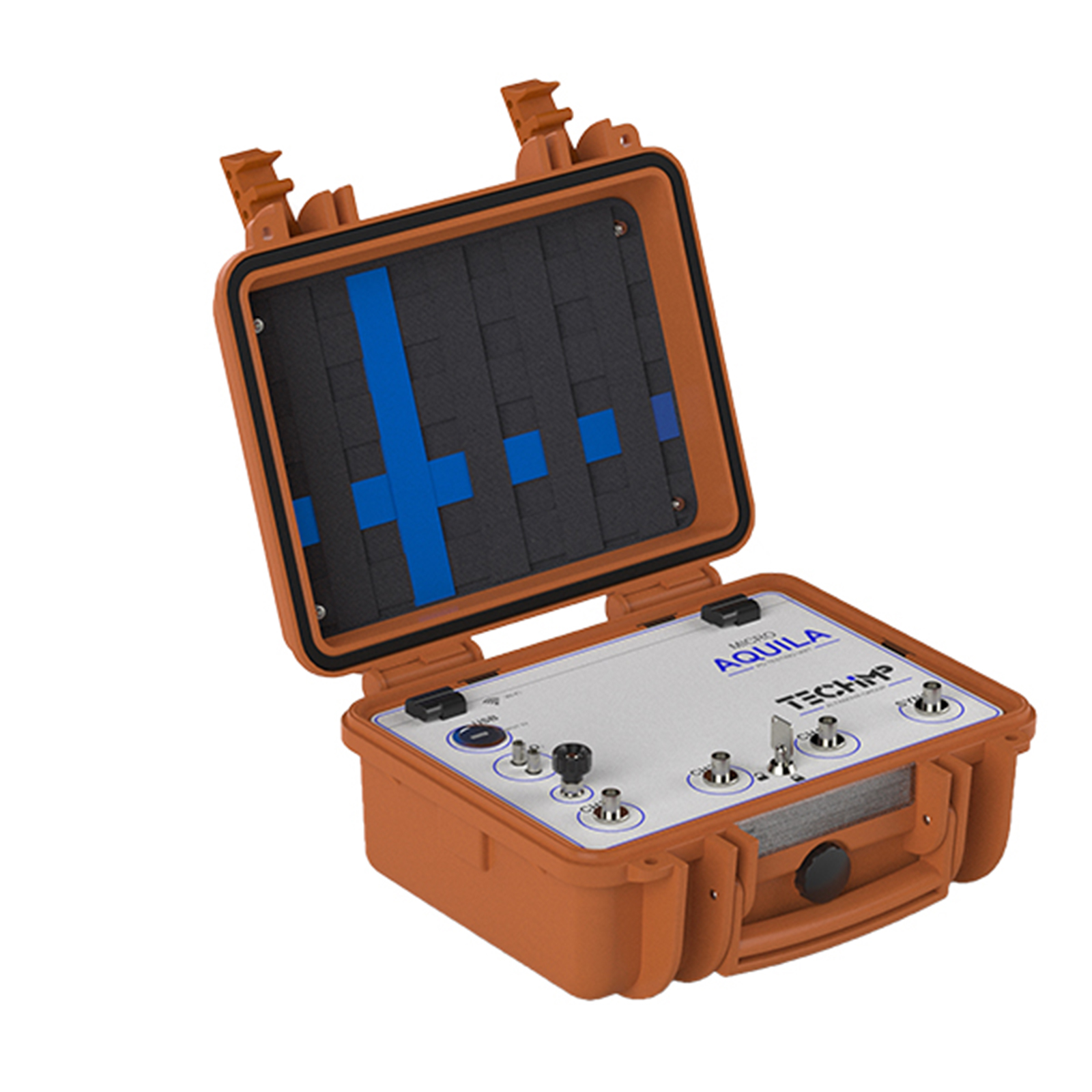

microAQUILA

The microAQUILA is the ultimate portable solution for PD assessment.
MicroAquila is a Highly flexible and reliable instrument for Partial Discharge (PD) diagnostic campaigns, a practical all-in-one instrument, equipped with all you need for a complete PD assessment.

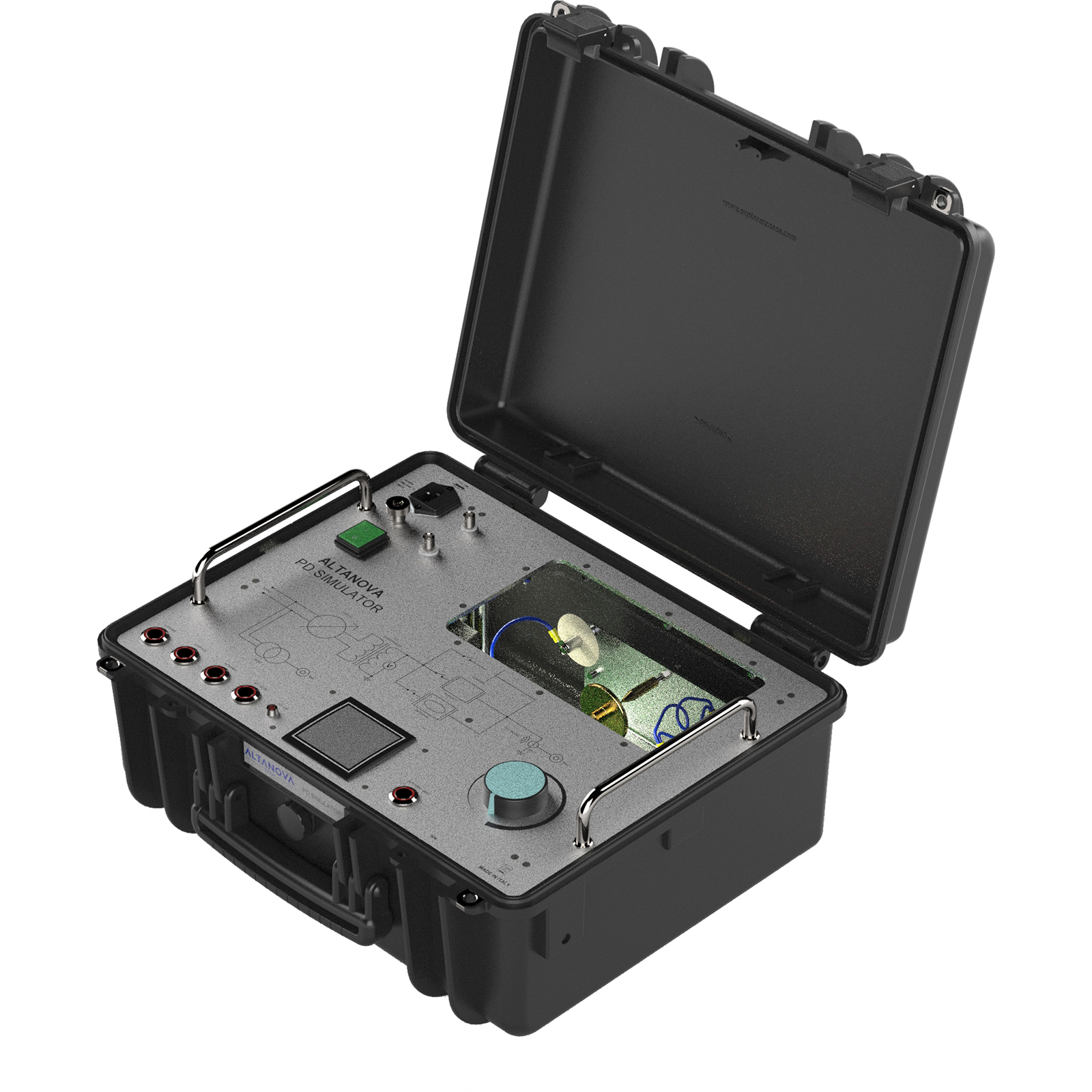

PD Simulator

TECHIMP’s PD Simulator is a portable device designed to demonstrate typical partial discharge phenomena (corona, superficial, internal) present in all MV and HV electrical assets.

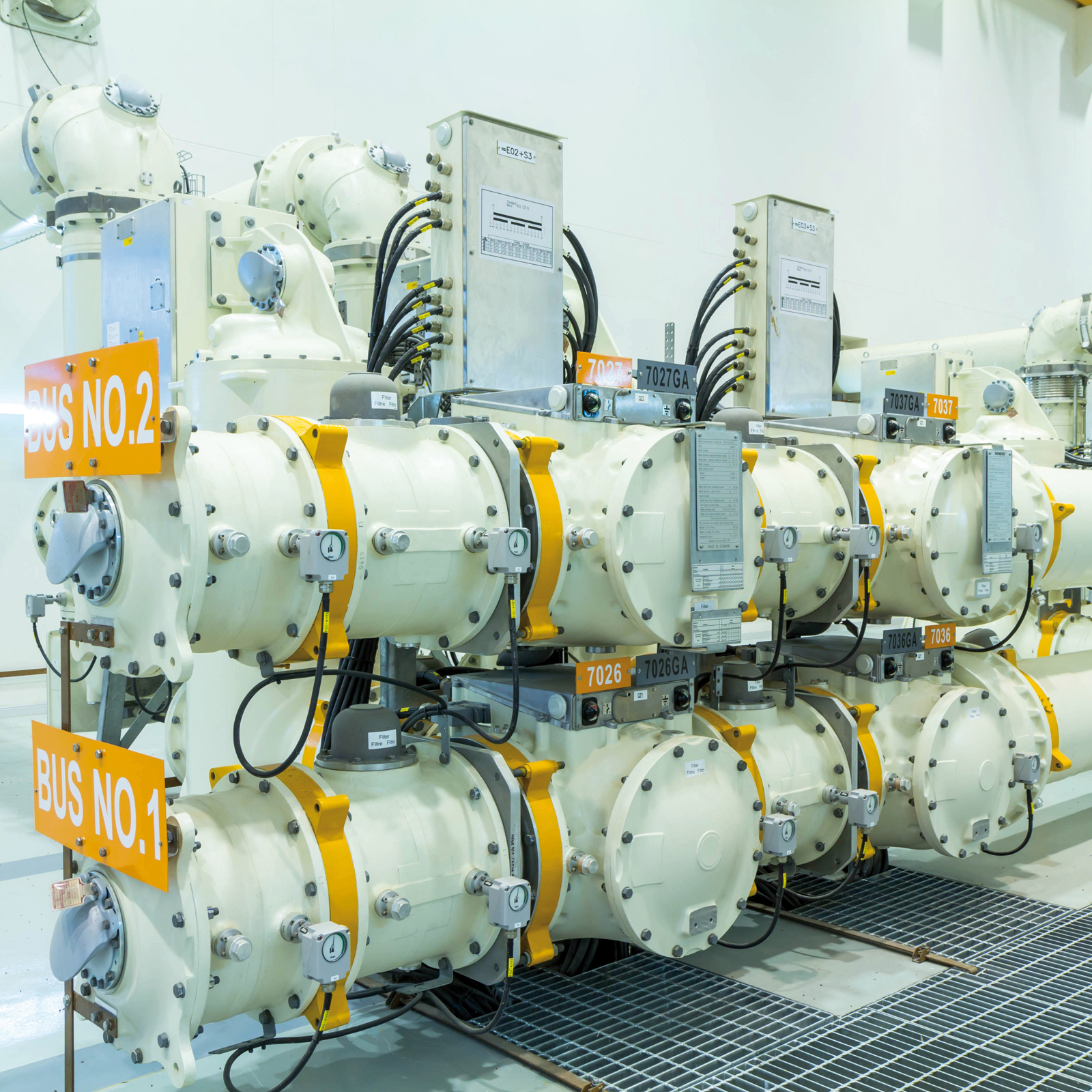

Global monitoring for HV GIS

ALTANOVAs Global Monitoring for HV GIS represents the latest state-of-the-art monitoring by integrating partial discharge (PDM), circuit breaker (CBM) and SF6 monitoring on one platform.

PDScope™

The PDScopeTM is the ideal device for PD Monitoring of HV Cable, Generators, GIS, MV cable and switchgear as well as transformers.
It's the ultimate solution for industrial monitoring. The PDScopeTM is a part of the PDCheckTM family and particularly designed to be an integral part of TECHIMP’s monitoring systems. Integrated into TECHIMP’s PDHubsTM, the PDScopeTM is a powerful PD analyzer based on Techimp TF Map technology (patented) allowing preliminary noise rejection and automatic calculation of statistical parameters relevant to Partial Discharges through its high resolution and fast sampling rates.

TD GUARD™

This is the ultimate solution for transformer monitoring
ITD GuardTM Intelligent Sensor is an on-line CONTINUOUS Capacitance and tan-δ monitoring system for transformer bushings.
The TD GuardTM Intelligent Sensor is providing absolute Tan-δ measurement in on-line permanent monitoring of transformer bushings, granting the best level of diagnostic leverage and reliability.

AQUILA™

AQUILATM - portable PD analyzer is a one for ALL Assets:
TECHIMPs PDPortable AQUILATM has been expressly designed to respond to all requests for a robust and compact portable all-in-one PD detection station providing a full range of options ideal for on field applications. 20+ years of service experience has been condensed in this unit representing a state-of-the-art PD device integrating TECHIMP's innovative PD detection technology (T/F Map) with multiple connectivity (Wi-Fi, Fiber Optics, USB, bluetooth) and power supply.
The instrument can be used to set-up a temporary monitoring system for simultaneous testing of HV cable during commissioning. Connection via fiber optic allows creating a network of acquisition units at different measurement points.

ALFA™

The ALFATM has been developed for service departments or companies with limited skills in the field of interpretation of PD data. With little effort in training of your staff, you will shortly be able to take PD measurements on your customers assets. With the data sent to our specialists you will receive a comprehensive analysis in return.
Like its big brother AQUILATM, the alfaTM has been expressly designed to respond to all requests for a robust and compact portable all-in-one PD testing device for all assets like transformer (HV & MV), cable (HV & MV), rotating machines (generators and motors) as well as switchgear (air- or gas-insulated).

microAQUILA

The microAQUILA is the ultimate portable solution for PD assessment.
MicroAquila is a Highly flexible and reliable instrument for Partial Discharge (PD) diagnostic campaigns, a practical all-in-one instrument, equipped with all you need for a complete PD assessment.

Expert Diagnostic System

EDS - Expert Diagnostic System - is an Overall Condition Moni­toring System designed to monitor the main substation assets: current transformer, voltage transformer, power transformers, circuit breakers, surge arresters and GIS switchgear, which integrates all the real time conditions from all relevant substation assets in a single system.

PD Hub™

Techimp’s Partial Discharge (PD) Monitoring systems usually consists of a Central Unit and distributed Data Acquisition Units – the PD Hub™ - able to acquire and process the PD signals locally detected through PD sensors installed on each of main electrical assets (generator, transformer, HV cables and GIS).

TiSCADA™

TECHIMP - Altanova Group has developed powerful and effective tools which can help asset managers to take critical decisions and manage power plants in a cost saving ways. Ti-SCADA implements a Real Time condition control of your asset, through a powerful Human Machine Interface (HMI) fully configurable, web based, displaying graphs, charts, trends, KPI, historical data, alarms and customizable reports.

PDPro

PDPro is a NEW software platform designed for all Techimp’s Partial Discharge testing instruments, suitable for all High and Medium Voltage equipment.

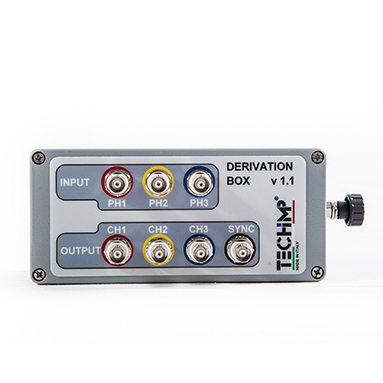

Derivation Box

Techimp Derivation Box allows to connect (permanently or temporarily) a PD measurement instrument to the sensors permanently installed in an electrical asset. Once installed, it allows the operator to connect the PD System and carry out a PD measurement without any outage of the equipment to be tested.

TEV Antenna

TEV stands for Transient Earth Voltage. TEV sensor is a partial discharge sensor whose working principle is based on a direct Capacitive coupling with a Switchgears earthed metal case.

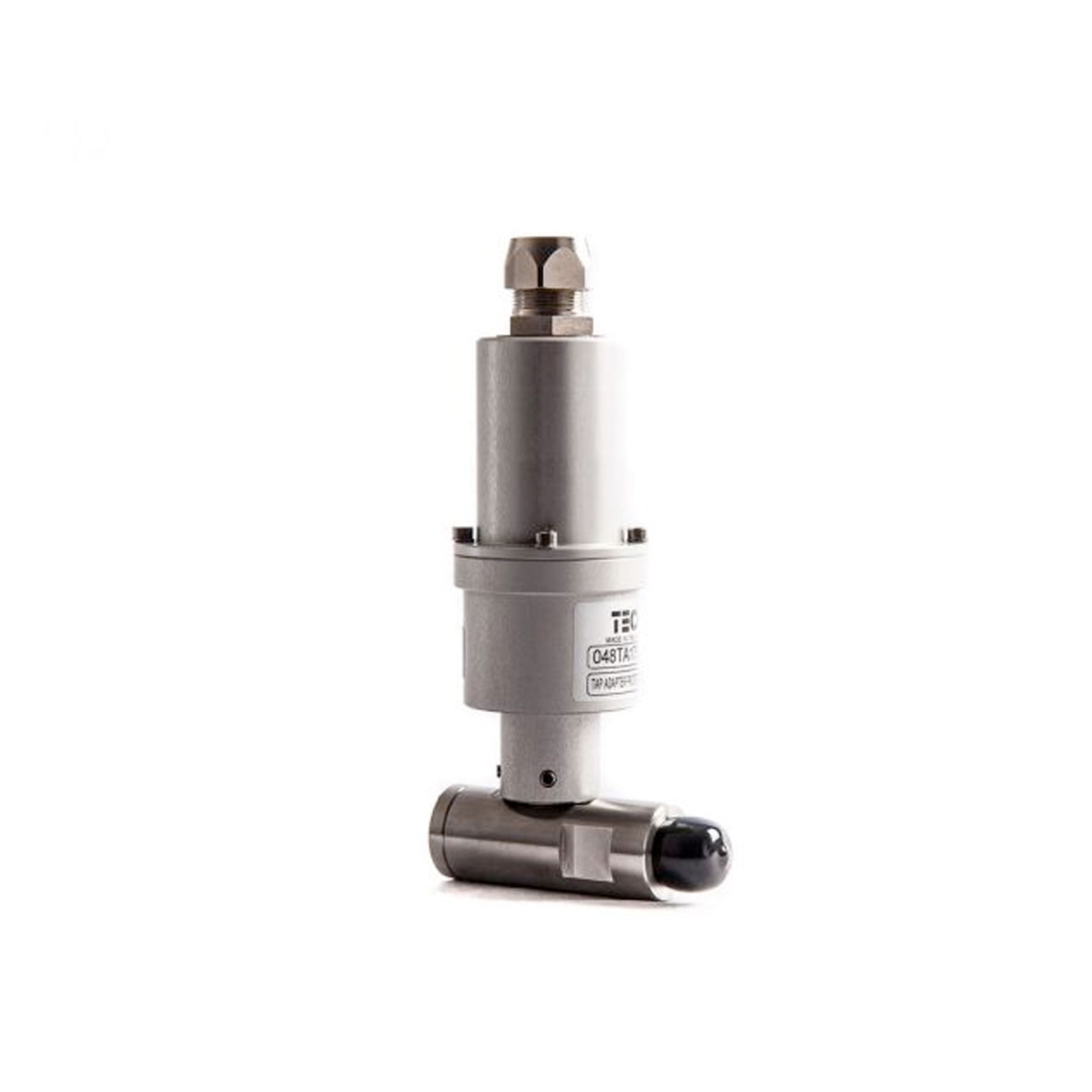

Tap Adapter

TECHIMP Voltage Tap Adapter allows the user to connect to the test tap (sometimes called power factor tap) of high voltage transformer bushings. While keeping the test tap well below the safety voltage level required by the manufacturer, the Tap Adapter lets the user to drain high frequency PD signals for diagnostic assessment of insulating materials. A synchronization signal can be derived as well. It is suitable for both single shot as well as continuous PD monitoring.

Global Tap Adapter Kit

TECHIMP’s Global Tap Adapter Kit for spot testing of transformer bushing connecting to the test tap. TECHIMP Bushing Tap Adapter allows the user to connect to several different types of test tap (sometimes called power factor tap) of high voltage transformer bushings. While keeping the test tap well below the safety voltage level required by the manufacturer, the Tap Adapter lets the user to drain high frequency PD signals for diagnostic assessment of insulating materials

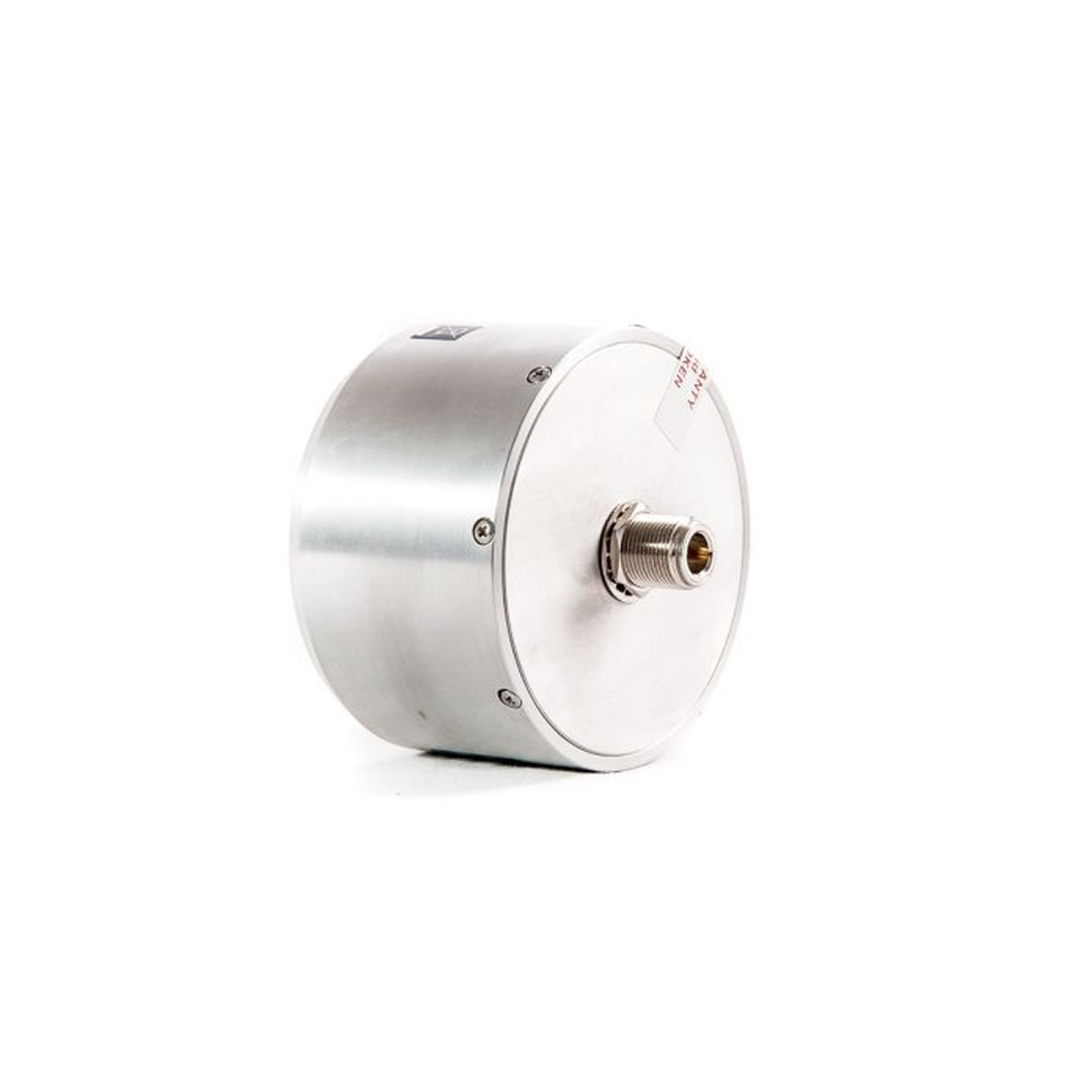

UHF Spiral Antenna for transformers

UHF Spiral antenna is a partial discharge sensor designed to receive electromagnetic (EM) emissions from a PD occurring in the monitored asset. It is a broadband antenna with a flat response which makes Spiral antenna suitable in a number of different applications. It has been optimized to operate in a frequency range typical for PD activity and it was designed to provide maximum sensitivity and high gain.

PD Calibrator

This High performance partial discharge calibrator has excellent pulse-with stability; scale calibration factors are permanently stored inside its flash memory. Thanks to on board photo coupler PDCAL output pulse can be synchronized with the actual line frequency through external surrounding electrical light source systems. 1pC-100pC, 50pC-800pC and 0.2V-50V UHF-GIS versions available

HFCT - High Frequency Current Transformer

Techimp HFCT is an inductive sensor for partial discharge measurements. It is suitable for on/off line PD tests on many electrical systems (cables, transformers, rotating machine, etc..). It has to be applied to the ground connection of the system to be tested.
High Frequency Current Transformer Clamp Ø 30-50-70-90 mm

HFCT clamp Ø 39 - 78 - 140 mm

TECHIMP’s Clamp High Frequency Current Transformer are inductive sensors for partial discharge measurements. It is suitable for on/off line PD tests on many electrical systems such as cables, transformers, rotating machine, etc...
The main advantage of a Clamp HFCT is that it can be clamped directly on the ground connection of the system to be tested without de-energizing it.

PD Simulator

TECHIMP’s PD Simulator is a portable device designed to demonstrate typical partial discharge phenomena (corona, superficial, internal) present in all MV and HV electrical assets.

PDBASE II

Acquisition Unit for Research and Quality Control. PDBaseIITM has been expressly designed for the needs of a researchlab or for quality control. The PDBaseIITM is equipped with an ultra-wide band digitizer and integrated processing capabilities. With its fast sampling rate (200 MS/s) and its on-board processing capabilities, a considerable number of digitized PD pulse waveforms are analyzed and pulse features are stored for a further processing leading to the final PD source identification

Air Circuit Breakers NRX Series.

Modern systems for low-voltage energy distribution, particularly those for regenerative applications, are more compact yet make higher demands on the integrated components. The new 'Series NRX' meets these increased demands with new materials and a modified construction. Two compact sizes facilitate smaller switch panels. The modular design and common range of accessories allow simple integration. 'Series NRX' offers a high degree of functionality and communication capability with impressive performance.

Moulded Case Circuit Breakers

The NZM Moulded Case Circuit Breakers range up to 1600 A and incorporate four switches with performance overlaps. These are available from 25 kA for small distribution boards up to 150 kA for complex high-energy systems. Switch-disconnectors up to 1600 A are available in the same design with the same system accessories.

The advantage of the BZM series is its simple use: The thermal and magnetic release system for over-current and short-circuit protection of your system is already factory set. Along with simple handling of the product and its accessories, Eaton’s BZM offering provides an attractive product assortment.

W-VACi Medium Voltage Vacuum Breakers

The new and extensive line of type W-VACi compact medium voltage vacuum circuit breakers with IEC ratings of 12 kV, 17.5 kV and 24 kV are part of Eaton’s comprehensive global product portfolio. They serve both 50 Hz and 60 Hz end-user segments of the electrical industry such as industrial, commercial, utility, mining, marine and offshore.

Motor Protective Circuit Breakers

Motor-protective circuit-breakers have been manufactured by Eaton since 1932. Our ideas and developments have decisively influenced the trends in the protection of motors since then. The results are progressive concepts and marketable product innovations that repeatedly assume the role of international trend setting, pioneering products.

Single-phase Current Relay K8DT-AS

Our Value Design Products Increase the Value of Your Control Panels. Detect errors in motors and other equipment through current changes. Use in either overcurrent or undercurrent mode.

Single-phase Voltage Relay K8DT-VS

Our Value Design Products Increase the Value of Your Control Panels. Detect abnormal voltages applies to equipment to protect against equipment failure. Use in either overvoltage or undervoltage mode.

Phase-sequence Phase-loss Relay K8DT-PH

Our Value Design Products Increase the Value of Your Control Panels. Protect motors and other equipment from unstable voltages in the power supply system. Protect motors and other equipment by detecting phase sequence and phase loss for three-phase power supplies.

Temperature Monitoring Relay K8DT-TH

Our Value Design Products Increase the Value of Your Control Panels. Ideal to prevent heater overheating. Self-latching output to contribute to safe equipment operation

Three-phase Voltage, Asymmetry, and Phase-sequence Phase-loss Relay

Ideal for Monitoring 3-phase Power Supplies for Industrial Facilities and Equipment. 17.5 mm (W). One SPDT output relays.

Thermistor Motor Protection Relay K8AK-TS / PT

This relay monitor the temperature Rise through Internal Motor Loss

Motor Protective Relay K2CM

Solid-state Relay Enables Choice of Three Operating Functions (Overcurrent, Openphase,and Reverse-phase)

Current Sensor SAO

These are Solid-state, Plug-in Current Sensor

Reverse Protection Relay

These relays use Voltage Detection to Determine Reverse Revolution of Three-phase Motor

MPCB system (motor protection CLASS 10)

The MPCB system has the following features:

Thermal Overload Relay

The J7TKN thermal overload relay has the following features:

CS Wall-Mounted Sheet Steel Enclosures

The degree of protection IP66 (UL/CSA Types 1, 12) of this enclosure guarantees full security for the installed equipment under most ambient conditions. This is assured for example by the continuous sponge rubber polyurethane seal

BC-A Compact Distribution Box

These compact distribution boxes BC-A are surface mounted with 1 up to 4 rows and 13 MU's (module units) per row. With three different door versions, BC-A compact distribution boxes offer tasteful designs that will perfectly harmonise with the style of any apartment.

BC-NK Compact Distribution Box

The BC-NK is a sheet steel enclosure with pre-stamped cable entry (RAL 9016). It is a removable device support with detachable DIN-rails, used as support for terminal support (BCZ-CS-BO, BCZ-A-KLT); the large space behind the DIN-rails permits efficient working and time saving

KLV-U Compact Distribution Box

The compact distribution boxes KLV-U are flush mounted for 1 up to 4 rows and 12+2 MU's (module units) per row. With four different tastefully designed door versions, KLV-U compact distribution boxes will perfectly harmonise with the style of any apartment.

Optimus™ DGA Monitor OPT100

The monitor’s IR sensor is based on Vaisala core measurement technology and critical sensor components manufactured in Vaisala cleanrooms. Vacuum gas extraction means no data fluctuation due to oil temperature, pressure, or type, while the hermetically sealed and protected optics prevent sensor contamination. The end result? A monitor that completely eliminates false alarms.

MHT410

Moisture, Hydrogen and Temperature Transmitter.
Designed for power transformer online monitoring. This transmitter is compatible with all insulation liquids, including silicon oil. Is your power transmission and distribution secured? Continuously monitoring hydrogen and moisture levels with an in-situ probe is the first step in extending the life of a transformer through implementation of predictive maintenance practices leading to lower total cost of ownership.

MM70

Handheld Moisture and Temperature Meter for spot-checking in oil.
Designed for transformers and oil pipelines. Reliable MM70 is an ideal tool for the preventive maintenance of oil-filled systems. The water activity measurement indicates the margin to free water formation, which causes severe problems in lubrication systems. Excellent pressure and temperature tolerance. The probe can be inserted directly into the process pipe through a ball valve without draining the oil in the system.

TD GUARD™

This is the ultimate solution for transformer monitoring
ITD GuardTM Intelligent Sensor is an on-line CONTINUOUS Capacitance and tan-δ monitoring system for transformer bushings.
The TD GuardTM Intelligent Sensor is providing absolute Tan-δ measurement in on-line permanent monitoring of transformer bushings, granting the best level of diagnostic leverage and reliability.

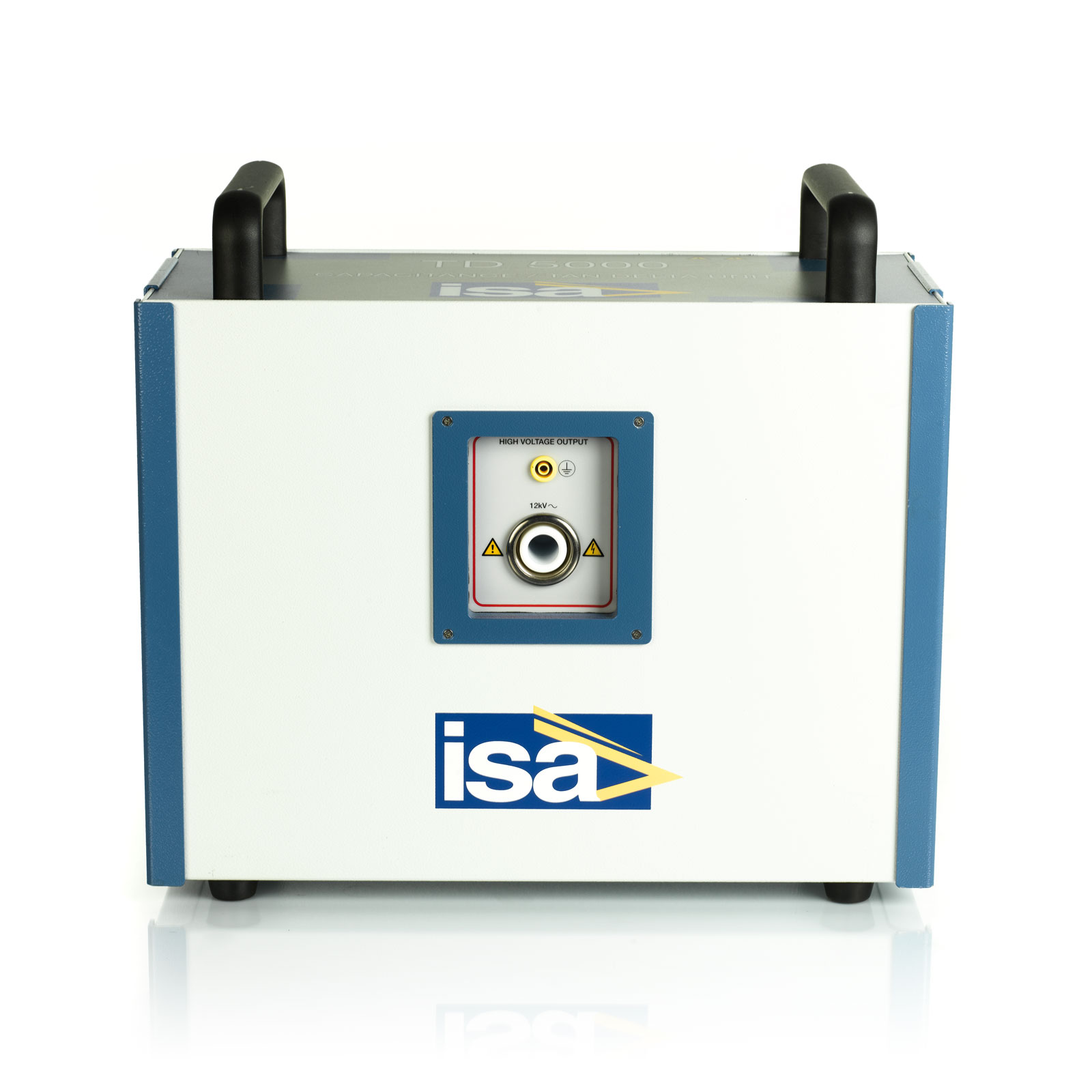

TD 5000

For tan delta test set. The high-voltage generator TD 5000 is a complementary module of STS serie. TD 5000 designed to perform Tan Delta measurements, dissipation factor and capacitance of transformer and bushing at the frequency of the mains or in a wide frequency range.

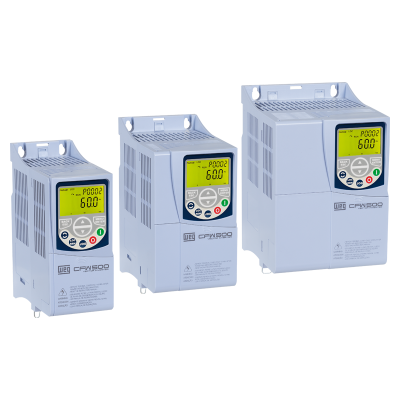

Low Voltage Variable Speed Drives

We supply a wide range of low voltage variable speed drives from our OEMs partners, with various Power supply input and Power rating ranging from 1.5 to 110kW. Models we have been supplying have:

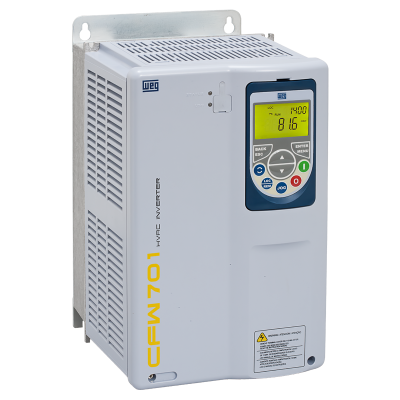

HVAC-R Variable Speed Drives

High-voltage AC VSDs are also in our portfolio; they come with many features and are equiped to improve the efficiency of motors. Models we have been supplying have:

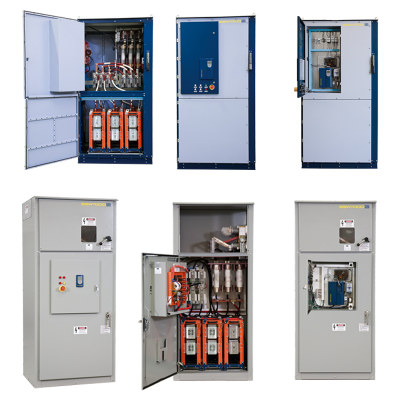

MV Drives & Soft Starters

Our Medium voltage drives & soft starter come complete with panel; they offer 450% overload capacity for 30s (twice per hour) and have a fiber optic interface. They also offer:

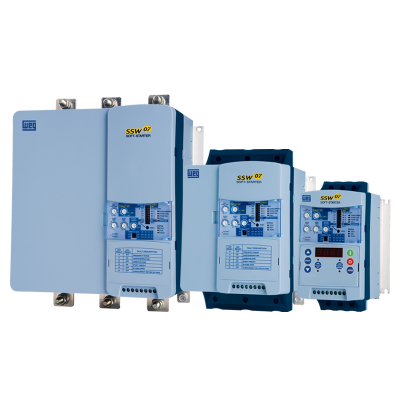

Soft Starters

Our soft starters accommodate various power ratings and voltage range; they also have many built in functions:

General Purpose Relays

We provide General-purpose Relays, I/O Relays, Power Relays, Latching Relays, and Ratchet Relays.

Safety Relays

Safety Relays are used to build safety circuits for equipment and facilities. Safety Relays have a forced guided mechanism that enables detecting contact welding.

Terminal Relays

Terminal Relay Series contributes to saving space in control panels. They are ideal for output interfaces.

I/O Relay Terminal

I/O Relay Terminals simplify connecting PLCs and other Controllers and help reduce wiring in control panels. Achieve wiring with one Connecting Cable. Terminals are available for both inputs and outputs.

Solid-state Relays

No-contact relays that semiconductor is utilized, which enables high-speed and high-frequency operation. We provide Solid-state Relay for enormous range of applications.

Photoelectric Sensors

Photoelectric Sensors detect photo-optical workpieces. We provide many varieties of Sensor, including diffuse-reflective, through-beam, retro-reflective, and distance-settable Sensors, as well as Sensors with either built-in or separate amplifiers.

Proximity Sensors

Proximity Sensors are available in models using high-frequency oscillation to detect ferrous and non-ferrous metal objects and in capacitive models to detect non-metal objects. Models are available with environment resistance, heat resistance, resistance to chemicals, and resistance to water.

Pressure/Flow Sensors

Proximity Sensors are available in models using high-frequency oscillation to detect ferrous and non-ferrous metal objects and in capacitive models to detect non-metal objects. Models are available with environment resistance, heat resistance, resistance to chemicals, and resistance to water.

Level Switches

These devices equip electrodes to detect liquid levels. They have been widely used in water works and sewers for buildings and housing complexes, industrial facilities and equipment, water treatment plants and sewage treatment facilities, and many other applications

Limit Switches

Limit Switch are basic switches that have been encased to protect them from external forces, water, oil, and dirt. Many models are available, such as those resistant to head, cold, or corrosion, as well as high-precision models.

Thumbwheel Switches

With Thumb Rotary Switches, a character dial is turned to switch an actuator and set a value. They are also called digital switches. OMRON provides many models with different sizes and operation methods.

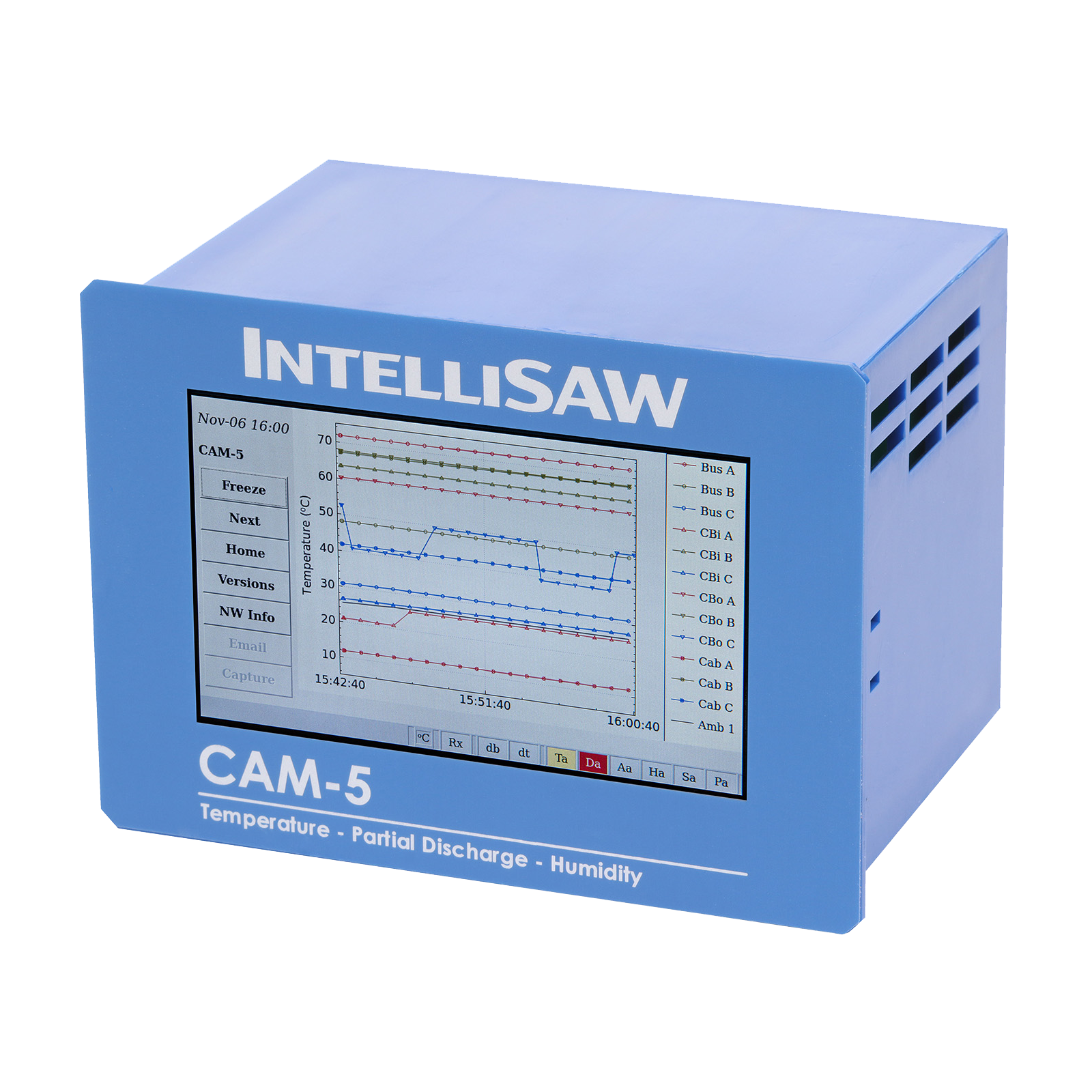

CAM-5 HMI

The IntelliSAW CAM-5 unit from Altanova Group provides data aggregation, storage, analytics, and alarming functionality for the IntelliSAW Critical Asset Monitoring platform, all in a compact form factor with local HMI display..

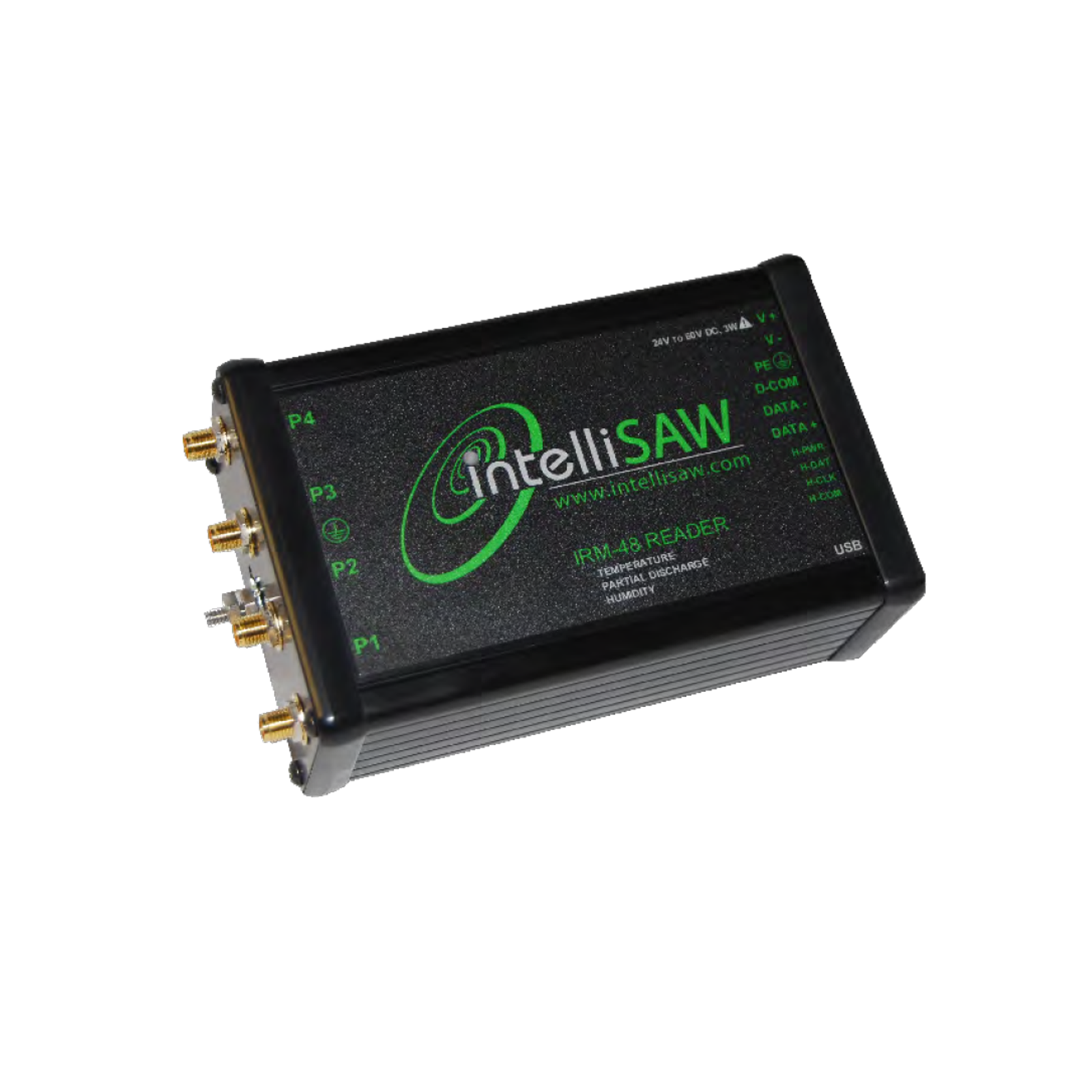

IRM Reader

The IntelliSAW IRM Reader is a remote monitoring unit providing temperature, partial discharge, and humidity sensing for predictive condition-based monitoring of electrical power critical assets such as switchgear, circuit breakers, and bus ducts. Multiple IRM Readers can be bussed to a CAM-5 system providing immediate data display and alarming, or easily integrated into an existing substation SCADA system.

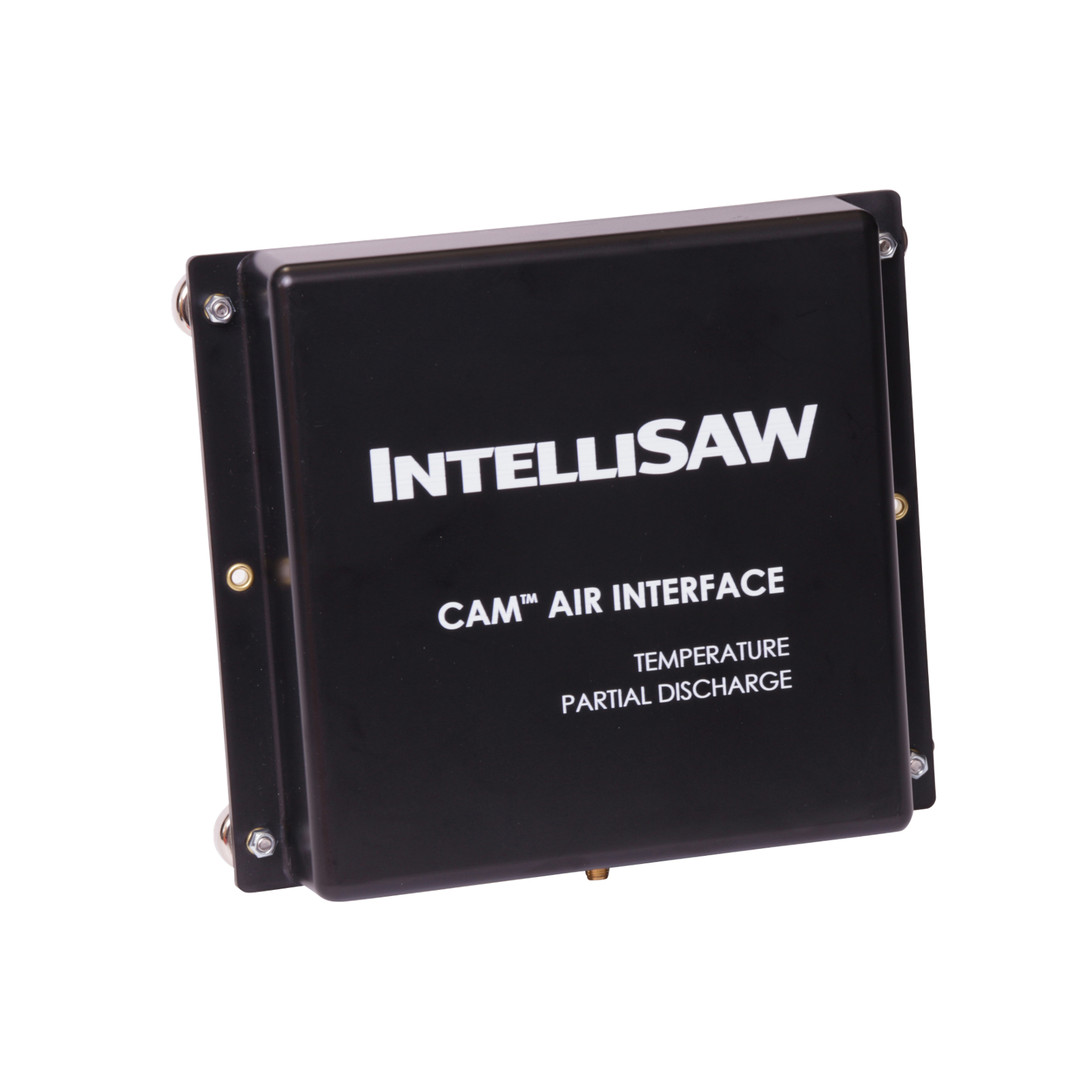

TPD Air Interface

CAM Partial Discharge Detection Continuous, real-time, early warning PD monitoring for critical assets in electrical power applications.

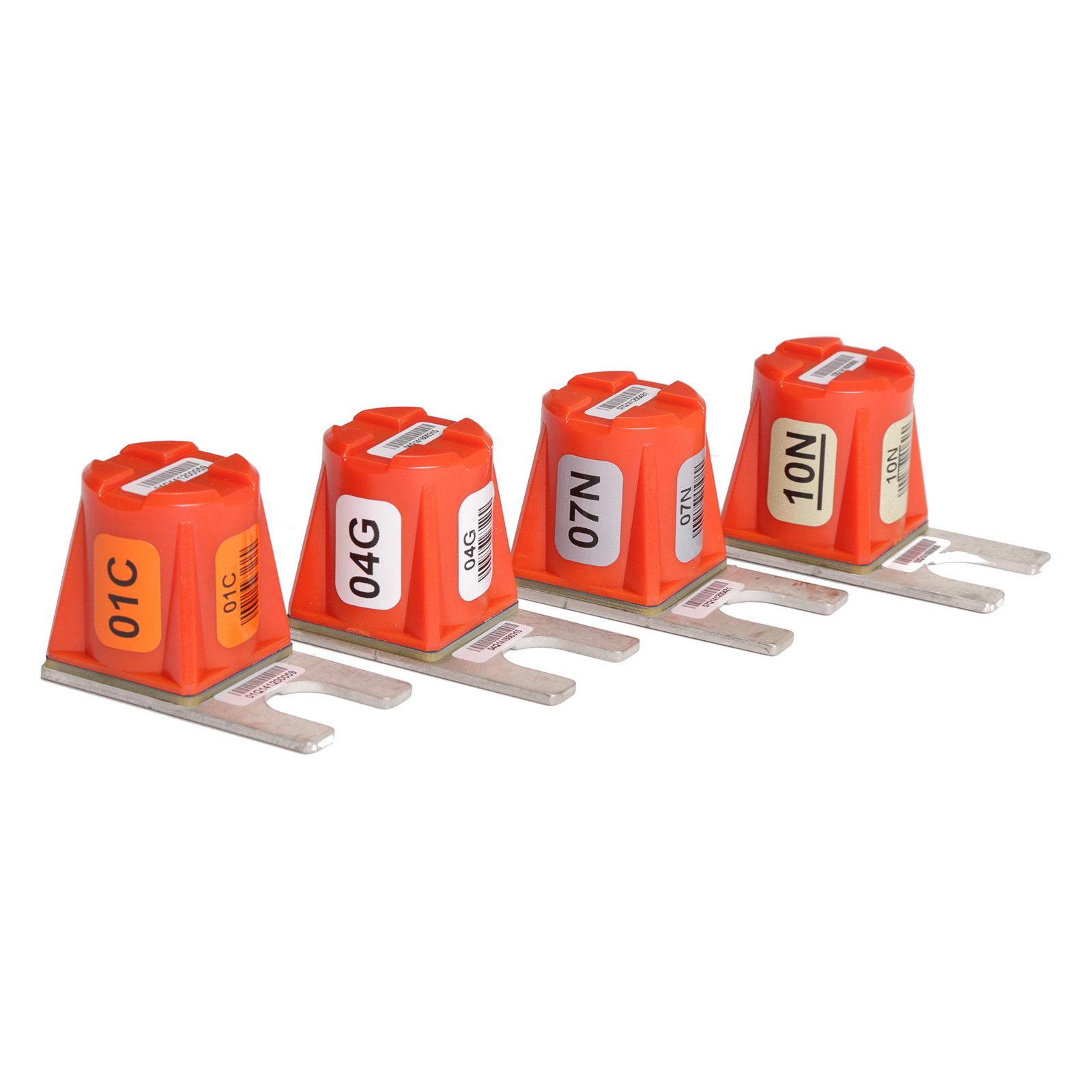

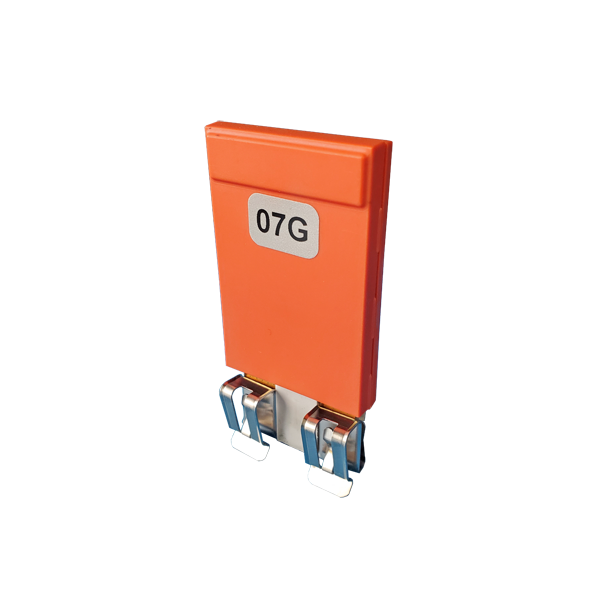

IS Temperature Sensors

The IntelliSAW temperature sensors are the ideal method for real-time, continuous monitoring of medium or low voltage critical asset hot-spots such as bus bars, breaker contacts, and cables.
Surface acoustic wave (SAW) technology enables a 100% wireless, passive (no power required) continuous temperature monitoring sensor. The SAW sensors were specifically designed for electrical power assets with basic insulation levels (BIL) up to 185kV.

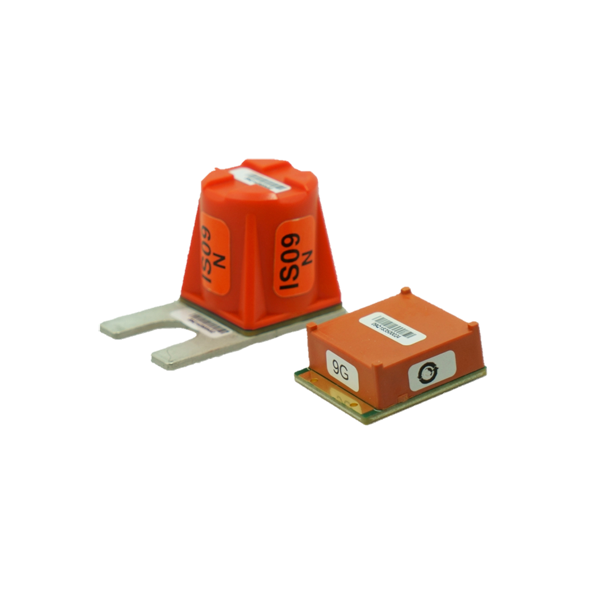

LP Temperature Sensors

IntelliSAW's low-profile (LP) sensors have all of the benefits of the IntelliSAW SAW (IS) sensors, with slightly different dimensions to accommodate different installation requirements.
In some installations, having a low-profile sensor allows for installation of sensors where taller bolt-mounted IS sensor would not have the proper clearance. This low-profile sensor allows for unique installations, such as installation directly onto a circuit breaker arm.

CC Temperature Sensors

IntelliSAW low voltage temperature sensors provide monitoring data based on physical contact with live (powered) potential hot spots while still ensuring electrical isolation through the use of embedded Integrated Near-Field Coupling (iNFC) wireless technology.

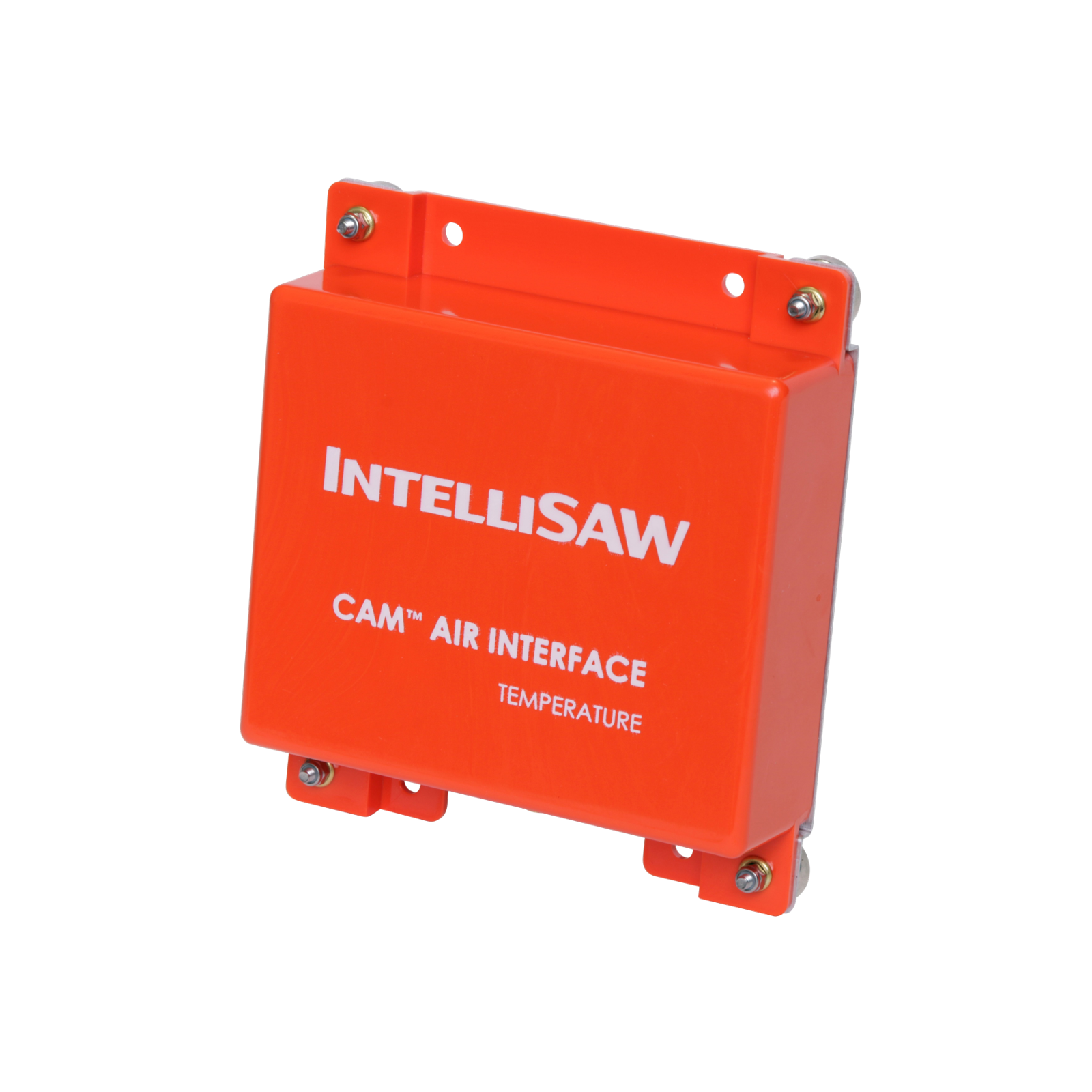

TMP Air interface

The IntelliSAW CAM TMP air interface is designed to maximise the wireless performance of IntelliSAW's wireless SAW temperature sensors.

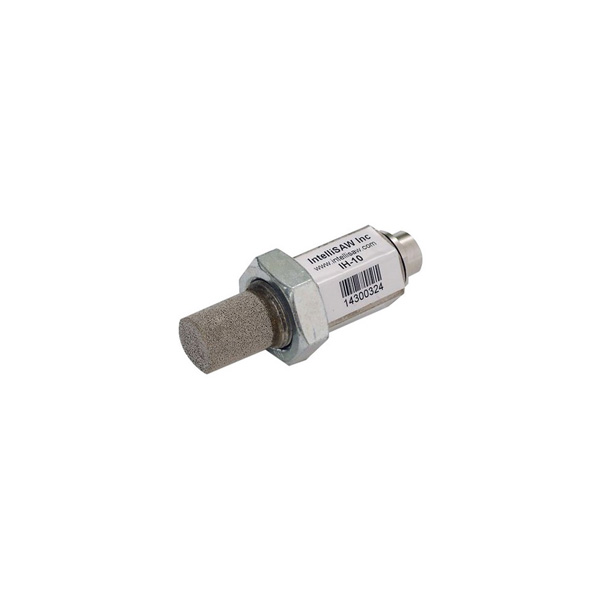

Humidity sensor

The IntelliSAW Humidity Sensor provides real-time, continuous monitoring of electrical power critical assets to identify the potential for flashover The sensor’s sintered cap, threaded body, water resistant M 12 connector, and 4 kV surge protection provides the level of packaging robustness required for reliable operation in harsh environments. The IntelliSAW Critical Asset Monitoring (CAM) platform units allows up to 8 humidity sensors to be bussed together for multiple location installations such as along a bus duct.

AQUILA™

AQUILATM - portable PD analyzer is a one for ALL Assets:
TECHIMPs PDPortable AQUILATM has been expressly designed to respond to all requests for a robust and compact portable all-in-one PD detection station providing a full range of options ideal for on field applications. 20+ years of service experience has been condensed in this unit representing a state-of-the-art PD device integrating TECHIMP's innovative PD detection technology (T/F Map) with multiple connectivity (Wi-Fi, Fiber Optics, USB, bluetooth) and power supply.
The instrument can be used to set-up a temporary monitoring system for simultaneous testing of HV cable during commissioning. Connection via fiber optic allows creating a network of acquisition units at different measurement points.

PDScope™

The PDScopeTM is the ideal device for PD Monitoring of HV Cable, Generators, GIS, MV cable and switchgear as well as transformers.
It's the ultimate solution for industrial monitoring. The PDScopeTM is a part of the PDCheckTM family and particularly designed to be an integral part of TECHIMP’s monitoring systems. Integrated into TECHIMP’s PDHubsTM, the PDScopeTM is a powerful PD analyzer based on Techimp TF Map technology (patented) allowing preliminary noise rejection and automatic calculation of statistical parameters relevant to Partial Discharges through its high resolution and fast sampling rates.

HFCT - High Frequency Current Transformer

Techimp HFCT is an inductive sensor for partial discharge measurements. It is suitable for on/off line PD tests on many electrical systems (cables, transformers, rotating machine, etc..). It has to be applied to the ground connection of the system to be tested.
High Frequency Current Transformer Clamp Ø 30-50-70-90 mm

PD Calibrator

This High performance partial discharge calibrator has excellent pulse-with stability; scale calibration factors are permanently stored inside its flash memory. Thanks to on board photo coupler PDCAL output pulse can be synchronized with the actual line frequency through external surrounding electrical light source systems. 1pC-100pC, 50pC-800pC and 0.2V-50V UHF-GIS versions available

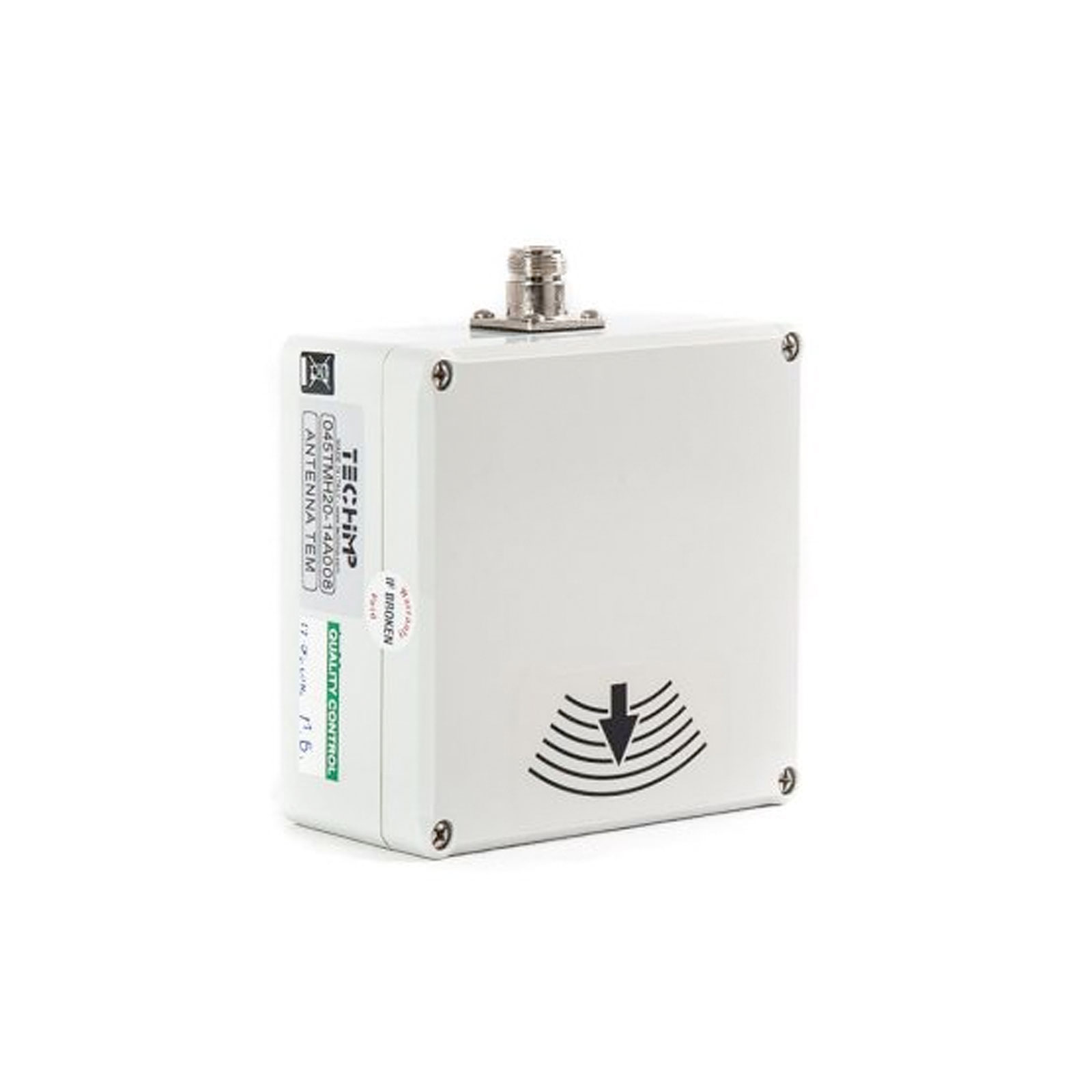

TEM Antenna

TEM antenna is a partial discharge sensor designed to receive electromagnetic (EM) emissions from a PD occurring in the monitored asset like, MV switchgears or LV and MV induction motors fed by power electronic impulses.

TEV Antenna

TEV stands for Transient Earth Voltage. TEV sensor is a partial discharge sensor whose working principle is based on a direct Capacitive coupling with a Switchgears earthed metal case.

PDBASE II

Acquisition Unit for Research and Quality Control. PDBaseIITM has been expressly designed for the needs of a researchlab or for quality control. The PDBaseIITM is equipped with an ultra-wide band digitizer and integrated processing capabilities. With its fast sampling rate (200 MS/s) and its on-board processing capabilities, a considerable number of digitized PD pulse waveforms are analyzed and pulse features are stored for a further processing leading to the final PD source identification

PD Hub™

Techimp’s Partial Discharge (PD) Monitoring systems usually consists of a Central Unit and distributed Data Acquisition Units – the PD Hub™ - able to acquire and process the PD signals locally detected through PD sensors installed on each of main electrical assets (generator, transformer, HV cables and GIS).

TiSCADA™

TECHIMP - Altanova Group has developed powerful and effective tools which can help asset managers to take critical decisions and manage power plants in a cost saving ways. Ti-SCADA implements a Real Time condition control of your asset, through a powerful Human Machine Interface (HMI) fully configurable, web based, displaying graphs, charts, trends, KPI, historical data, alarms and customizable reports.

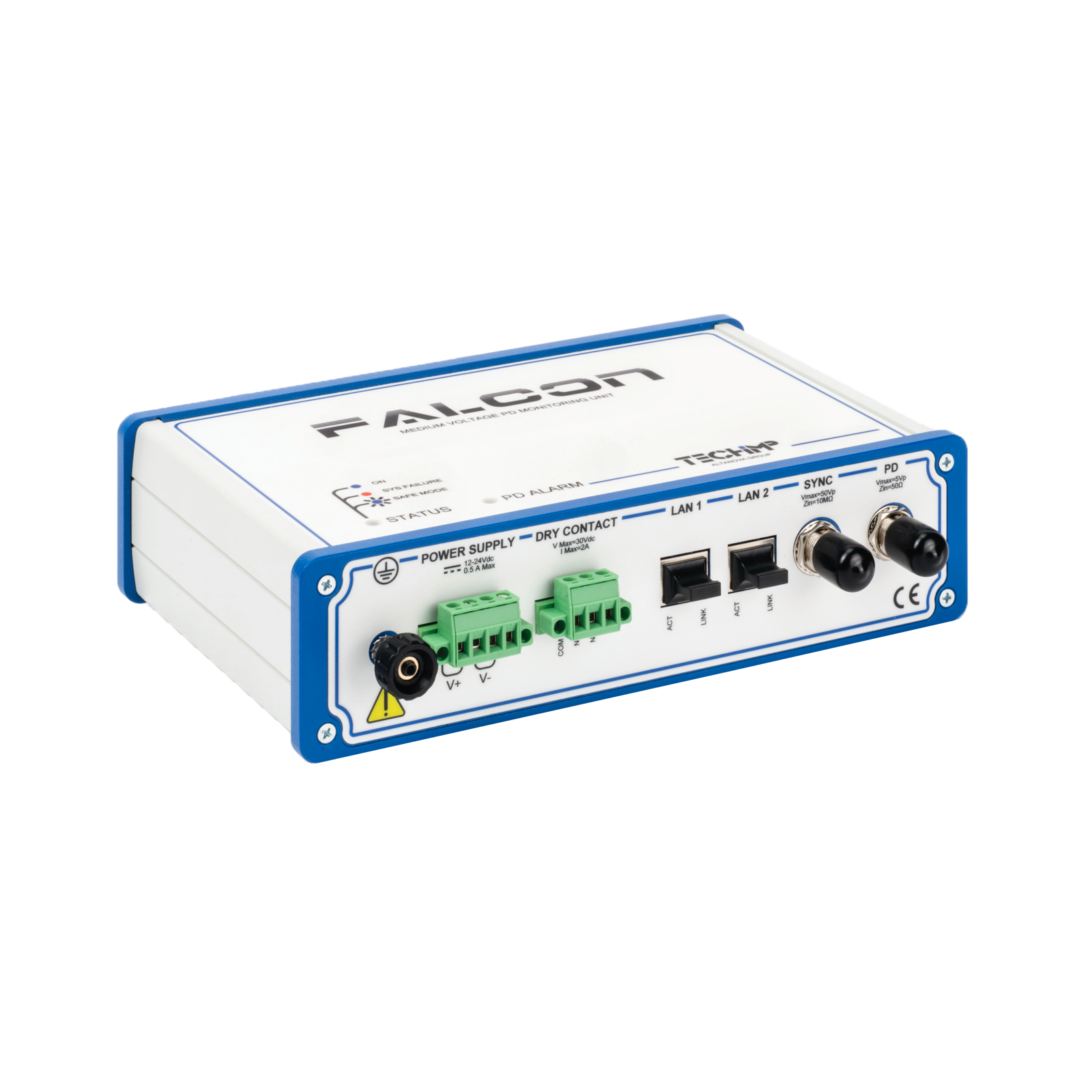

FALCON™

FALCONTM is representing the latest state of the art technology for partial discharge monitoring (PDM) of MV assets, combining proven and patented technology from HV asset monitoring with economic requirements. FALCONTM is acquiring and processing high frequency PD signals locally detected by the sensors to which it is connected, whether inductive (HFCT), capacitive (TEV).

ALFA™

The ALFATM has been developed for service departments or companies with limited skills in the field of interpretation of PD data. With little effort in training of your staff, you will shortly be able to take PD measurements on your customers assets. With the data sent to our specialists you will receive a comprehensive analysis in return.
Like its big brother AQUILATM, the alfaTM has been expressly designed to respond to all requests for a robust and compact portable all-in-one PD testing device for all assets like transformer (HV & MV), cable (HV & MV), rotating machines (generators and motors) as well as switchgear (air- or gas-insulated).

PDPro

PDPro is a NEW software platform designed for all Techimp’s Partial Discharge testing instruments, suitable for all High and Medium Voltage equipment.

microAQUILA

The microAQUILA is the ultimate portable solution for PD assessment.
MicroAquila is a Highly flexible and reliable instrument for Partial Discharge (PD) diagnostic campaigns, a practical all-in-one instrument, equipped with all you need for a complete PD assessment.

PD Simulator

TECHIMP’s PD Simulator is a portable device designed to demonstrate typical partial discharge phenomena (corona, superficial, internal) present in all MV and HV electrical assets.

Derivation Box

Techimp Derivation Box allows to connect (permanently or temporarily) a PD measurement instrument to the sensors permanently installed in an electrical asset. Once installed, it allows the operator to connect the PD System and carry out a PD measurement without any outage of the equipment to be tested.

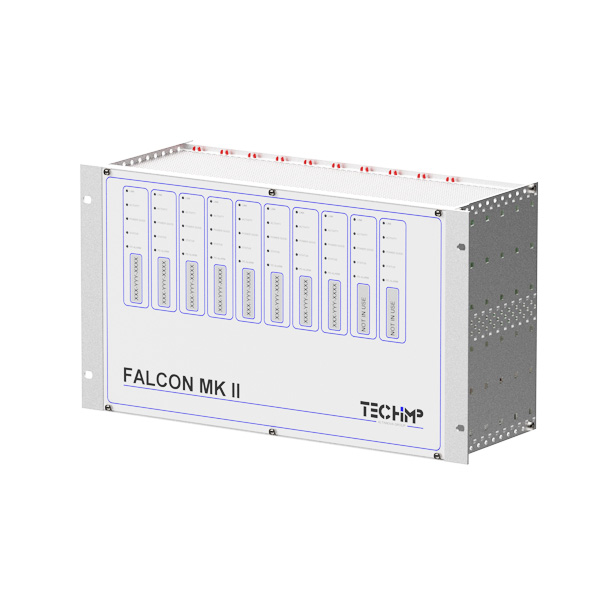

FALCON MK II

FALCON MKII System is a comprehensive solution to monitor Partial Discharge, enclosure contact temperature, and humidity, designed to monitor large clusters of switchgear.

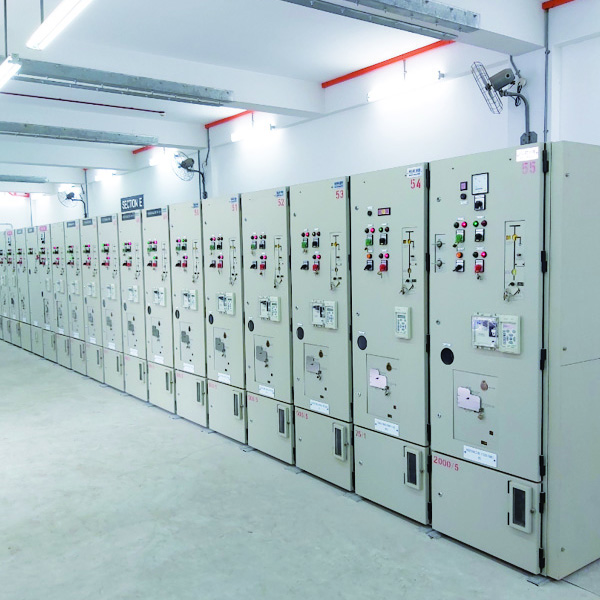

Global monitoring for MV switchgear

The condition monitoring of medium voltage switchgears provides round-the-clock information on the health of the monitored equipment, therefore it is essential to increase the reliability of the power grid to guarantee the best services to the community.

PDScope™

The PDScopeTM is the ideal device for PD Monitoring of HV Cable, Generators, GIS, MV cable and switchgear as well as transformers.
It's the ultimate solution for industrial monitoring. The PDScopeTM is a part of the PDCheckTM family and particularly designed to be an integral part of TECHIMP’s monitoring systems. Integrated into TECHIMP’s PDHubsTM, the PDScopeTM is a powerful PD analyzer based on Techimp TF Map technology (patented) allowing preliminary noise rejection and automatic calculation of statistical parameters relevant to Partial Discharges through its high resolution and fast sampling rates.

HFCT - High Frequency Current Transformer

Techimp HFCT is an inductive sensor for partial discharge measurements. It is suitable for on/off line PD tests on many electrical systems (cables, transformers, rotating machine, etc..). It has to be applied to the ground connection of the system to be tested.
High Frequency Current Transformer Clamp Ø 30-50-70-90 mm

PD Calibrator

This High performance partial discharge calibrator has excellent pulse-with stability; scale calibration factors are permanently stored inside its flash memory. Thanks to on board photo coupler PDCAL output pulse can be synchronized with the actual line frequency through external surrounding electrical light source systems. 1pC-100pC, 50pC-800pC and 0.2V-50V UHF-GIS versions available

TEM Antenna

TEM antenna is a partial discharge sensor designed to receive electromagnetic (EM) emissions from a PD occurring in the monitored asset like, MV switchgears or LV and MV induction motors fed by power electronic impulses.

TEV Antenna

TEV stands for Transient Earth Voltage. TEV sensor is a partial discharge sensor whose working principle is based on a direct Capacitive coupling with a Switchgears earthed metal case.

PDBASE II

Acquisition Unit for Research and Quality Control. PDBaseIITM has been expressly designed for the needs of a researchlab or for quality control. The PDBaseIITM is equipped with an ultra-wide band digitizer and integrated processing capabilities. With its fast sampling rate (200 MS/s) and its on-board processing capabilities, a considerable number of digitized PD pulse waveforms are analyzed and pulse features are stored for a further processing leading to the final PD source identification

PD Hub™

Techimp’s Partial Discharge (PD) Monitoring systems usually consists of a Central Unit and distributed Data Acquisition Units – the PD Hub™ - able to acquire and process the PD signals locally detected through PD sensors installed on each of main electrical assets (generator, transformer, HV cables and GIS).

TiSCADA™

TECHIMP - Altanova Group has developed powerful and effective tools which can help asset managers to take critical decisions and manage power plants in a cost saving ways. Ti-SCADA implements a Real Time condition control of your asset, through a powerful Human Machine Interface (HMI) fully configurable, web based, displaying graphs, charts, trends, KPI, historical data, alarms and customizable reports.

FALCON™

FALCONTM is representing the latest state of the art technology for partial discharge monitoring (PDM) of MV assets, combining proven and patented technology from HV asset monitoring with economic requirements. FALCONTM is acquiring and processing high frequency PD signals locally detected by the sensors to which it is connected, whether inductive (HFCT), capacitive (TEV).

ALFA™

The ALFATM has been developed for service departments or companies with limited skills in the field of interpretation of PD data. With little effort in training of your staff, you will shortly be able to take PD measurements on your customers assets. With the data sent to our specialists you will receive a comprehensive analysis in return.
Like its big brother AQUILATM, the alfaTM has been expressly designed to respond to all requests for a robust and compact portable all-in-one PD testing device for all assets like transformer (HV & MV), cable (HV & MV), rotating machines (generators and motors) as well as switchgear (air- or gas-insulated).

PDPro

PDPro is a NEW software platform designed for all Techimp’s Partial Discharge testing instruments, suitable for all High and Medium Voltage equipment.

microAQUILA

The microAQUILA is the ultimate portable solution for PD assessment.
MicroAquila is a Highly flexible and reliable instrument for Partial Discharge (PD) diagnostic campaigns, a practical all-in-one instrument, equipped with all you need for a complete PD assessment.

PD Simulator

TECHIMP’s PD Simulator is a portable device designed to demonstrate typical partial discharge phenomena (corona, superficial, internal) present in all MV and HV electrical assets.

Derivation Box

Techimp Derivation Box allows to connect (permanently or temporarily) a PD measurement instrument to the sensors permanently installed in an electrical asset. Once installed, it allows the operator to connect the PD System and carry out a PD measurement without any outage of the equipment to be tested.

FALCON MK II

FALCON MKII System is a comprehensive solution to monitor Partial Discharge, enclosure contact temperature, and humidity, designed to monitor large clusters of switchgear.
